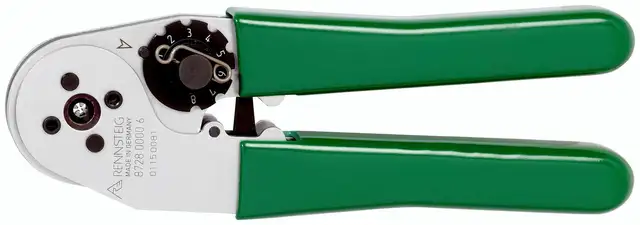

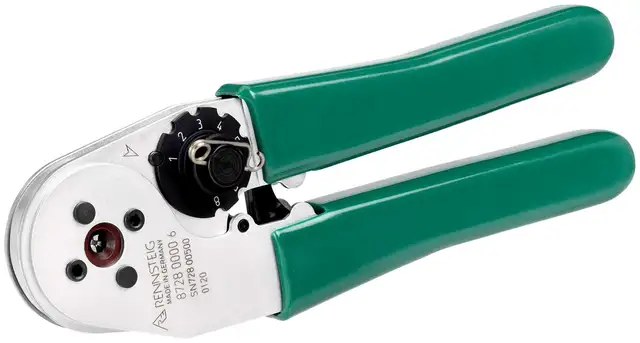

SELECTORCRIMP 4/8 IDENT AVIATION CONTACT

Crimping Tool 8.72-8 Rennsteig

Art.nr: 120946
EAN: 4049002101281
SELECTORCRIMP 4/8 IDENT AVIATION CONTACT Crimping Tool 8.72-8 Rennsteig SELECTORCRIMP 4/8 IDENT AVIATION CONTACT Crimping Tool 8.72-8 Rennsteig SELECTORCRIMP 4/8 IDENT AVIATION CONTACT Crimping Tool 8.72-8 Rennsteig
Eks. mva.
-+
Bestillingsvare (7 dager)

SelectorCrimp 4/8 indent crimping tool for aviation contacts

  • Special crimping tool for crimping turned pin and socket contacts, primarily according to AS39029 and EN3155
  • Use of locators according to the AS22520 aviation standard and structurally identical models easily possible
  • Crimp indenters, adapter ring and selector stages comply with specifications from the AS22520 aviation standard
  • Checking of default setting using go/no-go gauges
  • Reliable crimping with forced-lock completion of crimping operation and synchronous closing of crimp indenters

Technische Eigenschaften


Art. No.8728 0000 6
EAN4049002101281
Weight295?g
Dimension175?mm
Capacity0.08 – 1.3?mm² / AWG?28 – 16
Acc. toAS22520/7-01
Max. contact Ø4.0?mm
Finishchrome plated
