MASKINVATER DIGITALT 0,05 PRO 3600

950-318 Mitutoyo

Art.nr: 111118
MASKINVATER DIGITALT 0,05 PRO 3600 950-318 Mitutoyo
Eks. mva.
-+
Bestillingsvare (7 dager)

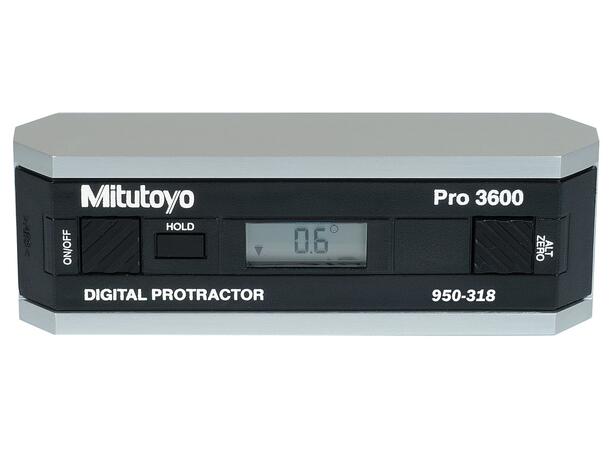

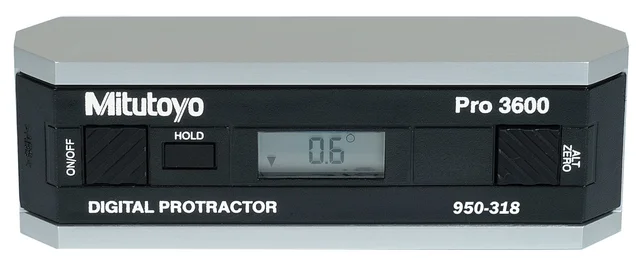

Digital Precision Level

Description

A high-resolution Mitutoyo digital protractor/level designed for making precise angle measurements in the vertical plane. The instrument can be zeroed at any angular position and directly indicates the angle between the stock and that position when in use to a resolution of 0.01 degree over a range of +/- 10 degrees (0.1 degree over the remainder of the range). When zeroed at the horizontal, readings are provided in the same manner as a spirit level, but with the advantage of a range extending all the way to the vertical.

Features

Range:
360° (4 x 90°)
Max. permissible error
(degrees):
0.05 (0 to 10)
0.1 (80 to 90)
0.2 (10 to 80)
Repeatability
(degrees):
0.05
Power supply:
Standard battery (9 V) 6LR61
Data output:
Yes
Battery life:
Approx. 500 hours
Sensitivity
(degrees):
0.01 (0 to 9.99)
0.1 (10 to 90)
Mass:
0.3 kg
