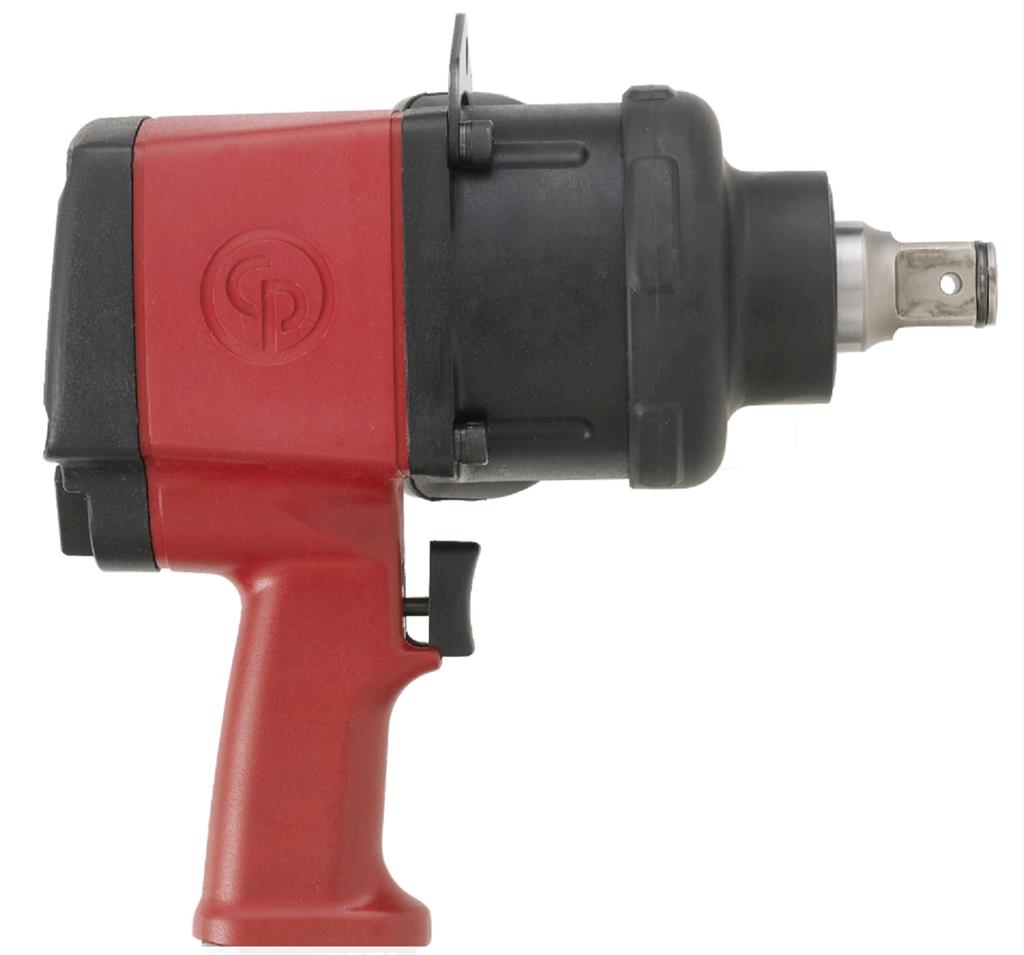

CP6910-P24 Kraftig 1" Muttertrekker
These tools are suitable for high production rates such as those on production/ assembly lines, where high durability is used and the tools are used frequently.
Support handles included with these tools.
Torque ranges should be used as a guide only. Final torque will depend on the joint, operating pressure and drive accessories.
Benefits
Ideal for a variety of heavy Industrial Maintenance applications
Reliable & powerful oil bath Pinless Rocking Dog clutch
Operator comfort with many ergonomic features
3-part construction reducing downtime maintenance
Features
1" Industrial Pistol impact wrench
Oil Bath Pinless rocking dog clutch
Durable Aluminum body & Rubber protective cover on clutch housing

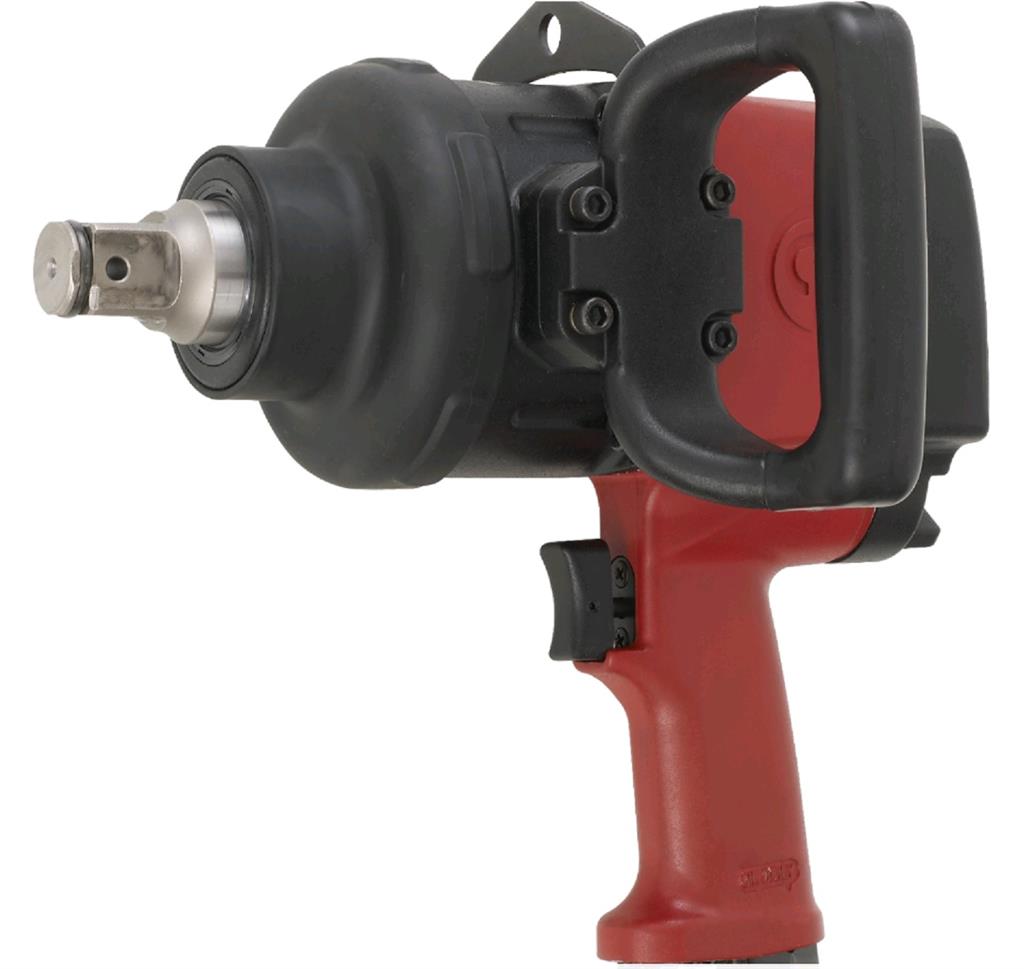

D-type side handle with Rubber grip
Dual (hole & ring) type socket retainer
Removable hole plate for suspension
Metal trigger & reverse knob for longer durability
3-positions regulator & easy reverse
| Model | CP6910-P24 |
| Part number | 6151590070 |
| Actual air consumption | 19 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 650 |
| Clutch type | Pinless Rocking Dog - Oil bath |
| Free speed | 5000 rpm |
| Handle type | Pistol |
| Length | 290 mm |
| Maximum Torque (reverse) | 2600 Nm |
| Min. hose size | 13 mm |
| Net weight | 10.2 kg |
| Power/weight ratio | 254.9 Nm/kg |
| Side to center | 55 mm |
| Socket retainer | Dual (hole+friction) |
| Sound Power | 108 db(A) |
| Sound pressure | 97 db(A) |
| Square drive | 1 " |
| VST2 | 37.7 |
| Vibration | 8.9 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 2 1/2 m/s² |
| Working Torque Range (fwd) | 500 - 2,100 Nm |
