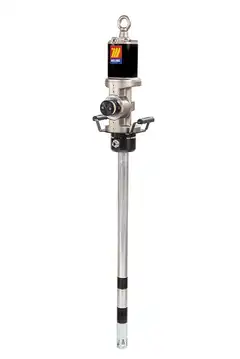

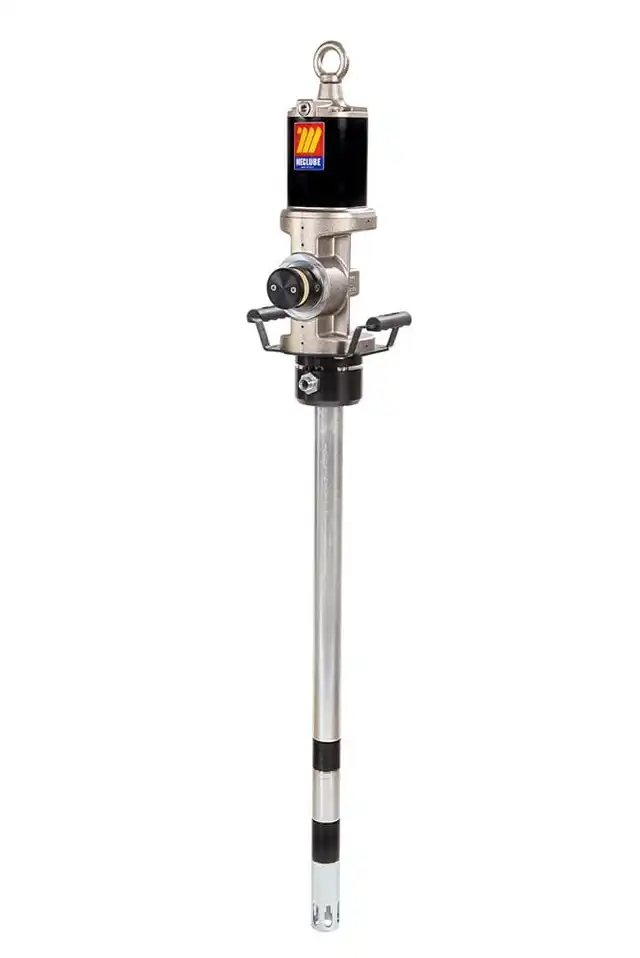

FATPUMPE INDUSTRI FOR OLJE 20:1

Suitable for high pressure transfer of high viscosity grease (maximum NLGI 3) over short and long distances.
The double effect grants the supply of a constant and continuous flow. They are suitable for central distribution
plants with multiple distribution points. The operating pressure of the pumps may vary between a minimum of 3
bar and a maximum of 8 bar. To optimize the efficiency and the life in time of our air operated pumps Meclube
recommends to use filtered and lubricated air

Spec:

• Compression ratio 20:1
• Max pressure supply 8 bar
• Air Inlet connection F 1/2” G
• Grease outlet connection F 1/2” G
• Grease delivery capacity 8 bar 12000 g/min
• Noise level 80 dB
• Shank diameter 50 mm
• Shank length 940 mm
• Air consumption 8 bar 1,75 m³/min
• Weight 27.4 kg
• For drums with capacity of 180-220 kg
