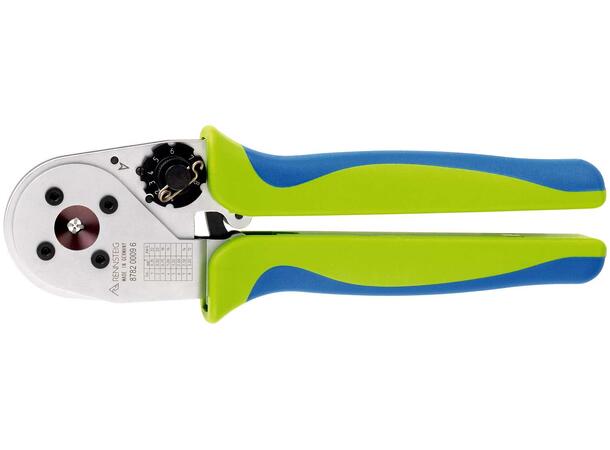

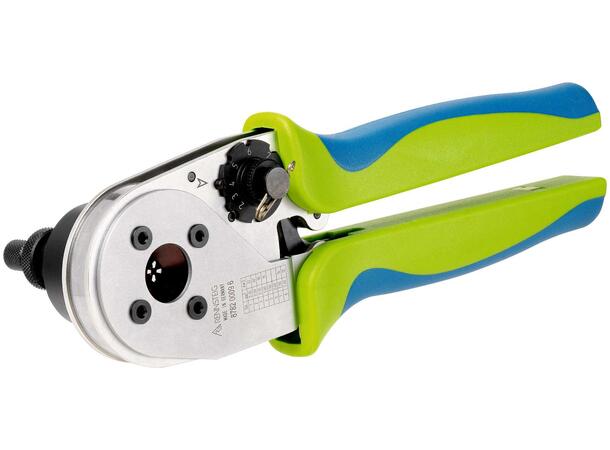

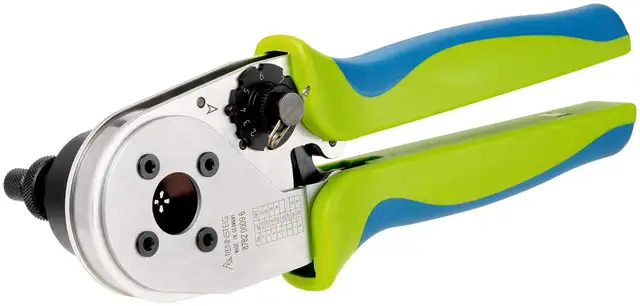

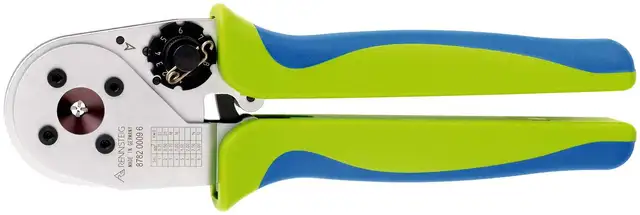

KRYMPETANG FOR DT KONTAKTER 8782 0009 6 RENNSTEIG

• Specialty crimping pliers for processing turned male and female contacts of the DEUTSCH-series from TE Connectivity
• Suitable for the following housing-series: AEC, DRB, DRC, DT, DTHD, DTM, DTP, DTV, HD10, HD30, HDP20, STRIKE, Jiffy Splice
• Crimp quality testing through GO-NOGO gauges (optional)
• Reliable crimping with forced-lock completion of crimping operation and synchronous closing of crimp indenters

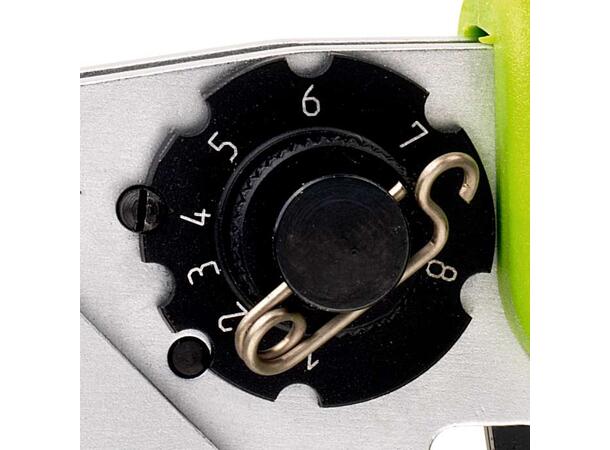

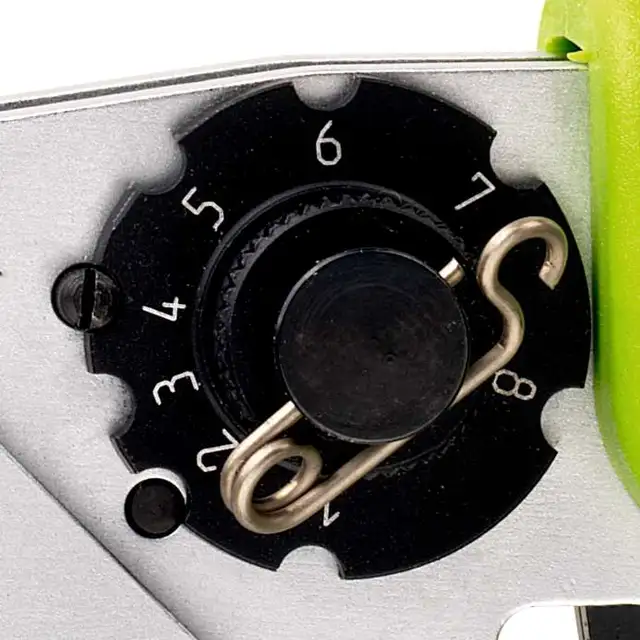

• Easy adjustment of crimp depth via adjustment wheel with 8 setting positions

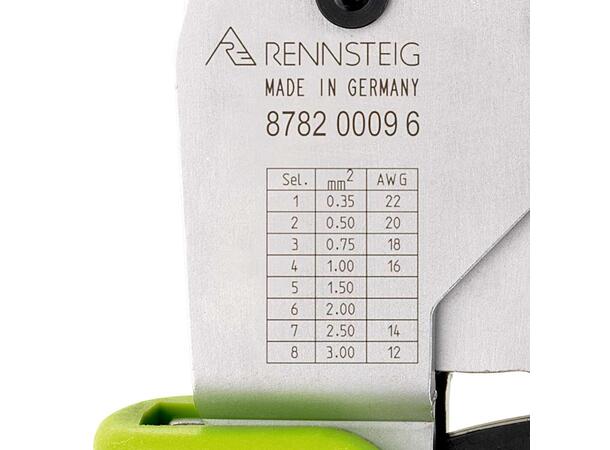

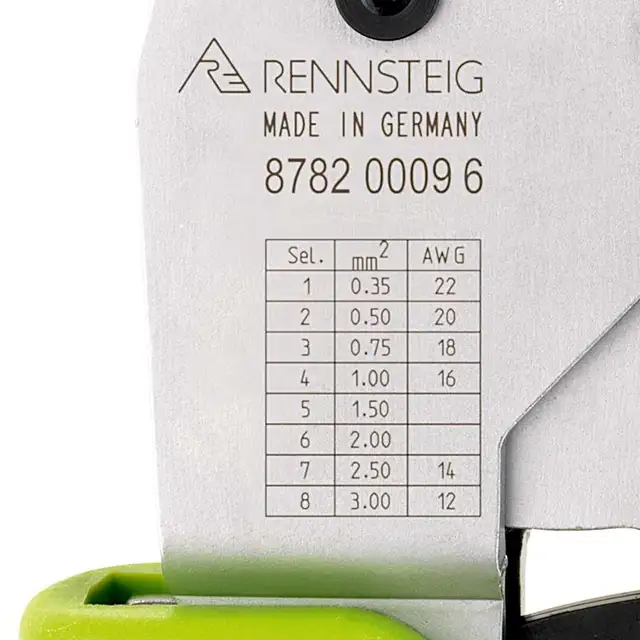

• Selector position for crimp depth adjustment can easily be read on the tool

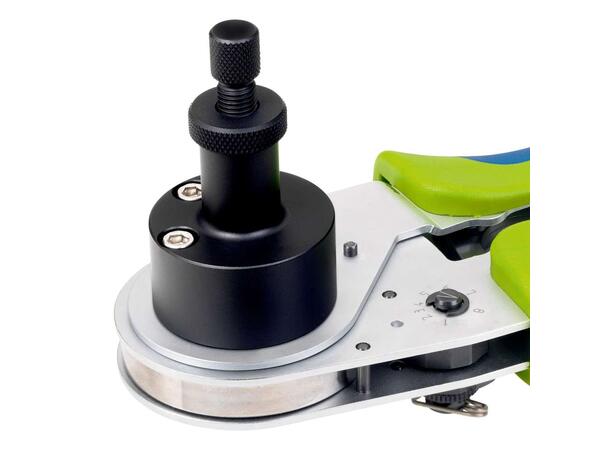

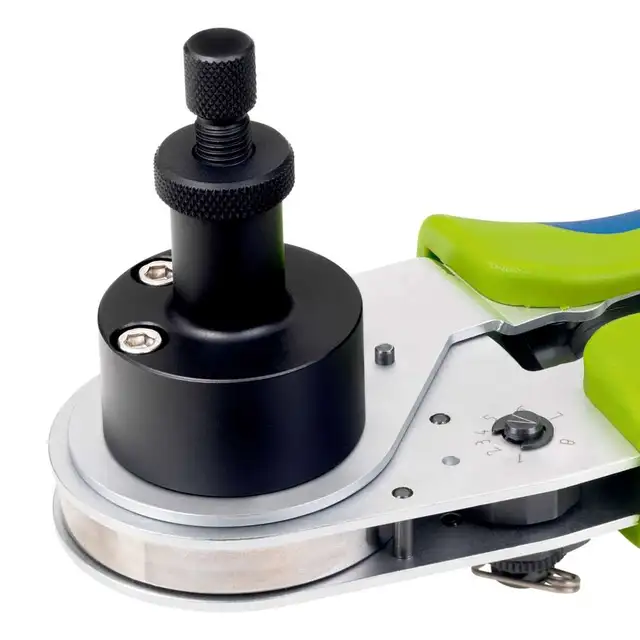

• Universal locator for flexible adjustment of different contact lengths
• Ergonomic design, opening width and hand force are optimized

Technical data:

Article No.: 8782 0009 6
EAN: 4049002145704
Weight: 650 g
Length: 230 mm
Capacity: 0.35 – 3.0 mm² / AWG 22 – 12
Max. Contact Ø: 5.5 mm
Finish: Chrome plated
