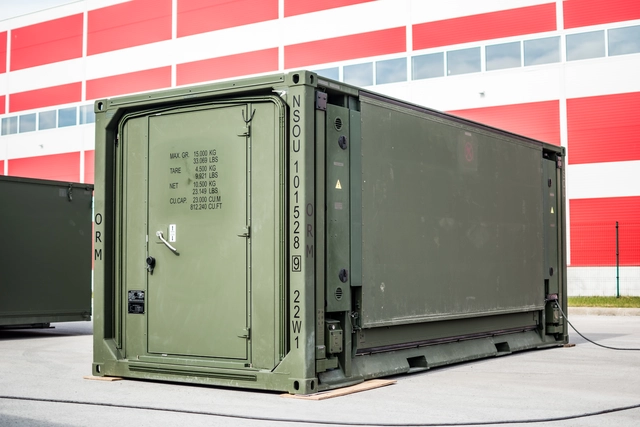

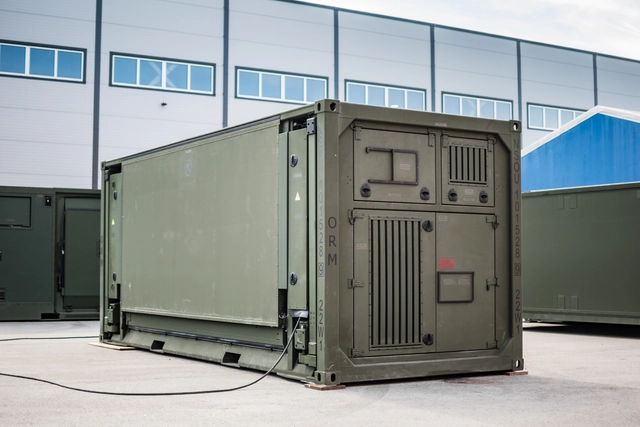

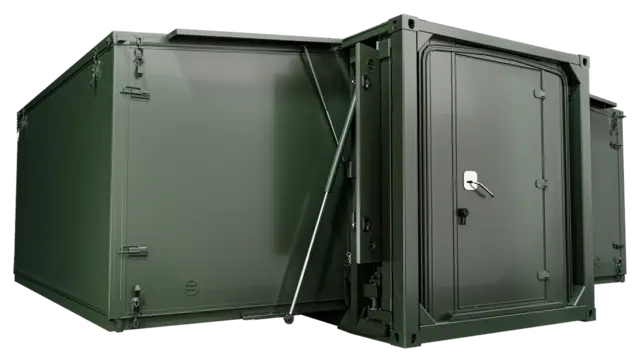

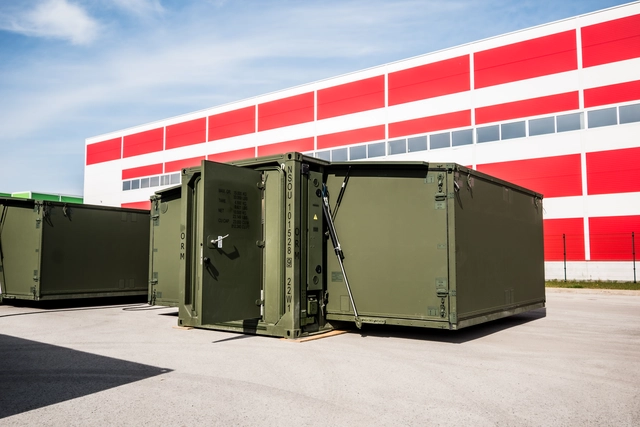

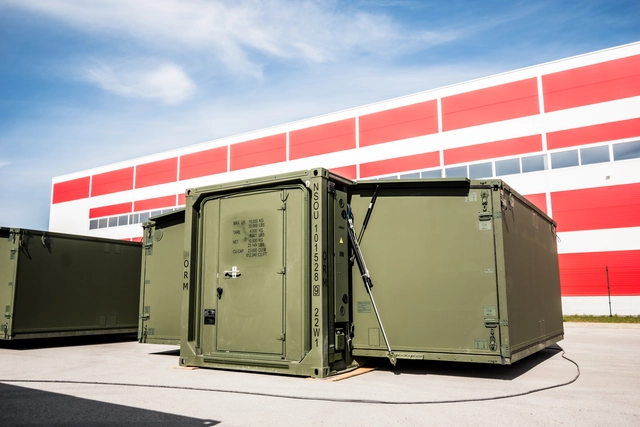

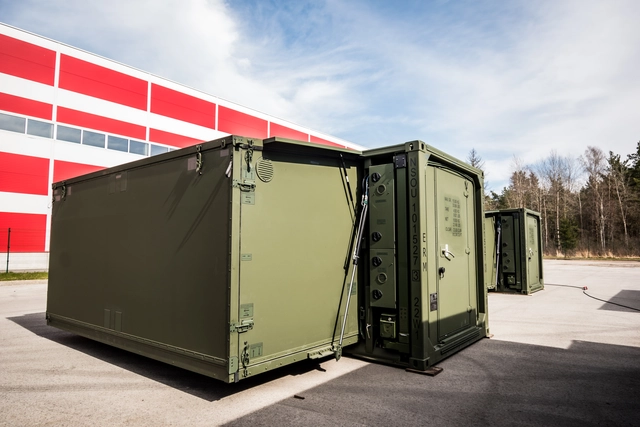

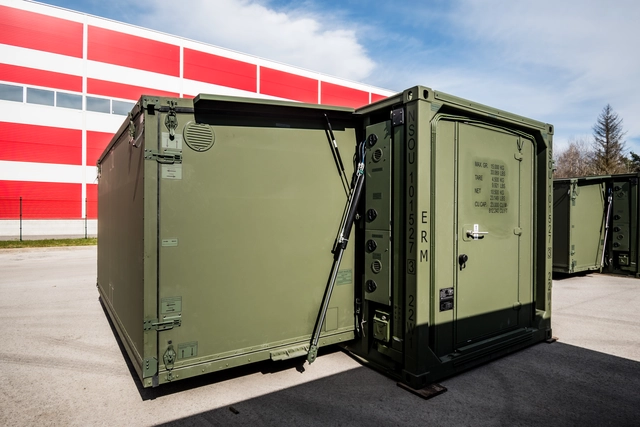

MOBILE HOSPITAL 20 FT

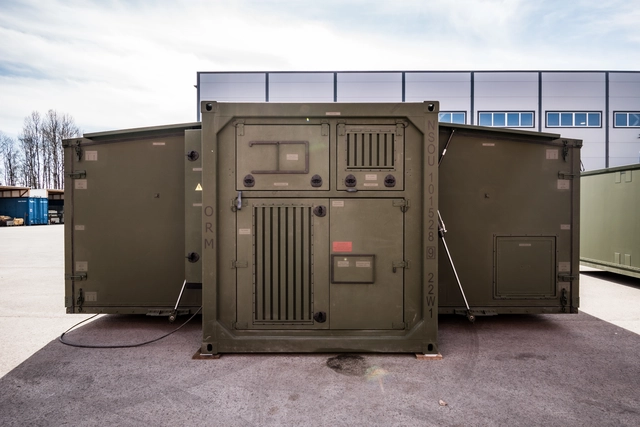

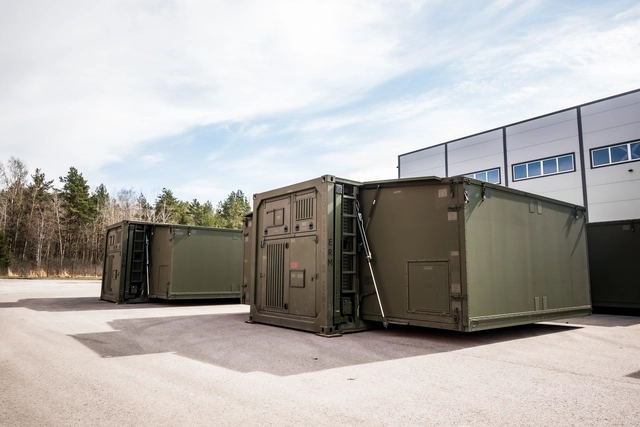

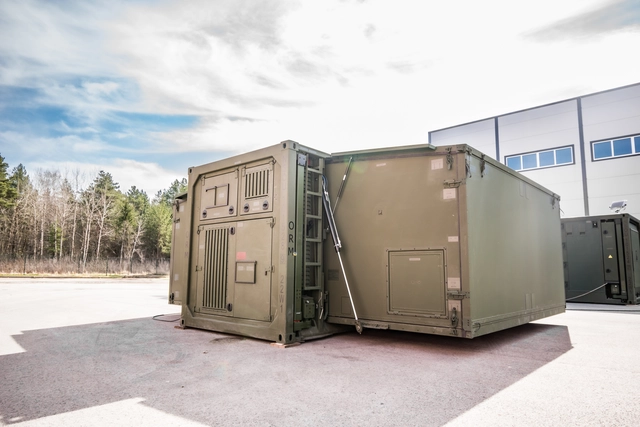

The Mobile Hospital system has been developed in a range of specialized configurations to address diverse medical and operational needs worldwide. Designed as a modular and rapidly deployable solution, it comprises dedicated units such as operating theatres, intensive care modules, treatment areas, diagnostic suites, vaccination units, and medical storage facilities—each engineered for reliable performance in the field. Built for missions requiring highly mobile medical capabilities, the system provides a fully functional healthcare environment and ensures dependable, autonomous operation in virtually any scenario.
SPESIFICATIONSThe Mobile Hospital system is designed for rapid medical deployment, efficient use of space, and reliable operation in demanding environments. Built to perform in extreme climates, it offers practical interior height, integrated medical systems, balanced transport weight, and fast setup. Its modular and scalable structure supports a wide range of essential medical roles in both civilian and military missions, providing a dependable and adaptable treatment environment wherever readiness is required.

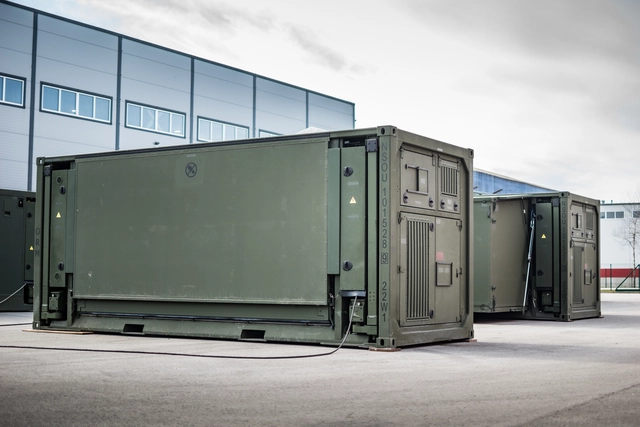

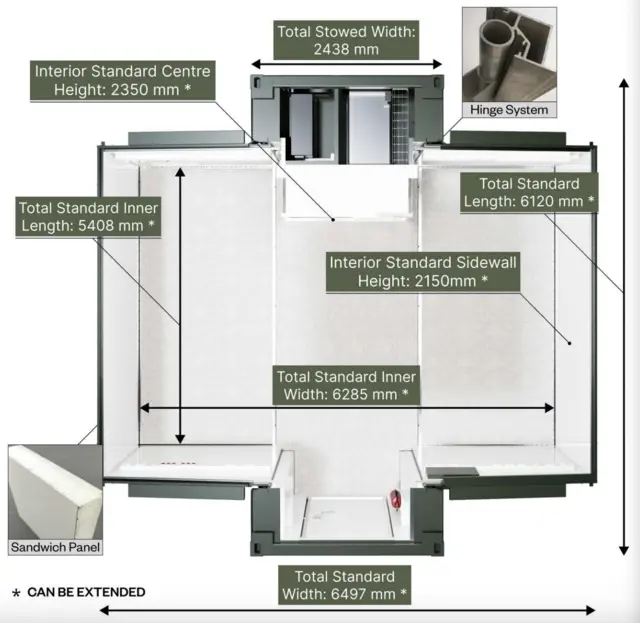

| Stowed dimensions | 6120 x 2438 x 2591mm |
| Deployed floor space | approx. 33 m2 |
| Interior center hight | 2300mm |
| Interior sidewall | 2150mm |
| NET tare weight | 4700 kg |
| Max GROSS weight | 9500 kg |
- Setup time: 30 minutes
- Extreme climate resistant
- External and Internal power supply
- CSC Certification
- ISO Standards compliance
FEATURES

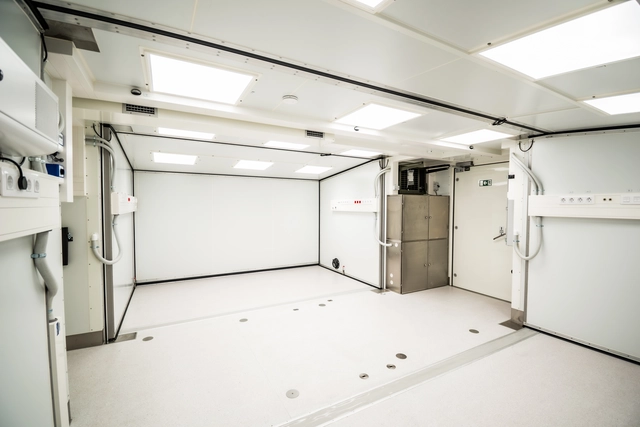

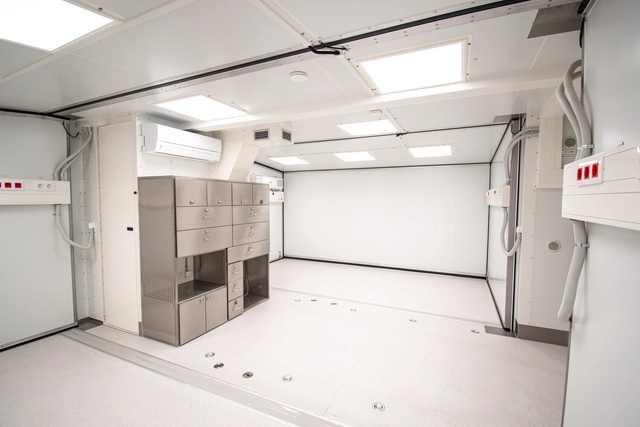

The Mobile Hospital system is constructed using medical-grade materials and a reinforced modular structure, making it well suited for field deployment. It includes insulated panels, climate-controlled interiors, sealed doors, integrated technical rooms, anti-slip flooring, power inlets, and LED lighting. Designed for demanding environments, the system ensures durability, protection, and reliable clinical performance during missions.
- CSC Certified, CE marked equipment, NATO origin.
- Standard ISO cargo container floor frame with forklift pockets.
- Sandwich panels with 0,9mm stainless steel sheets on both sides with 50mm EPS foam in the middle
- 70-80mm of foam insulation in floor and roof
- Hinge system with extruder aluminum profiles on top rail and end frames.
- Heavy duty rubber gaskets

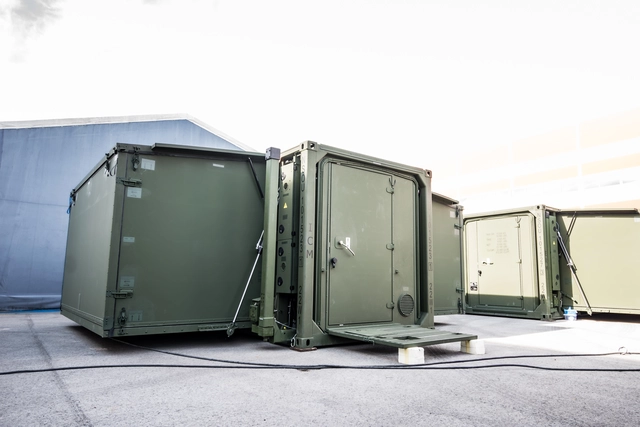

- Gas spring and winch assisted ceiling and floor panel deployment for safe 2-person 20 minutes setup.
- Standard insulated steel entrence door (950 x 2000mm)

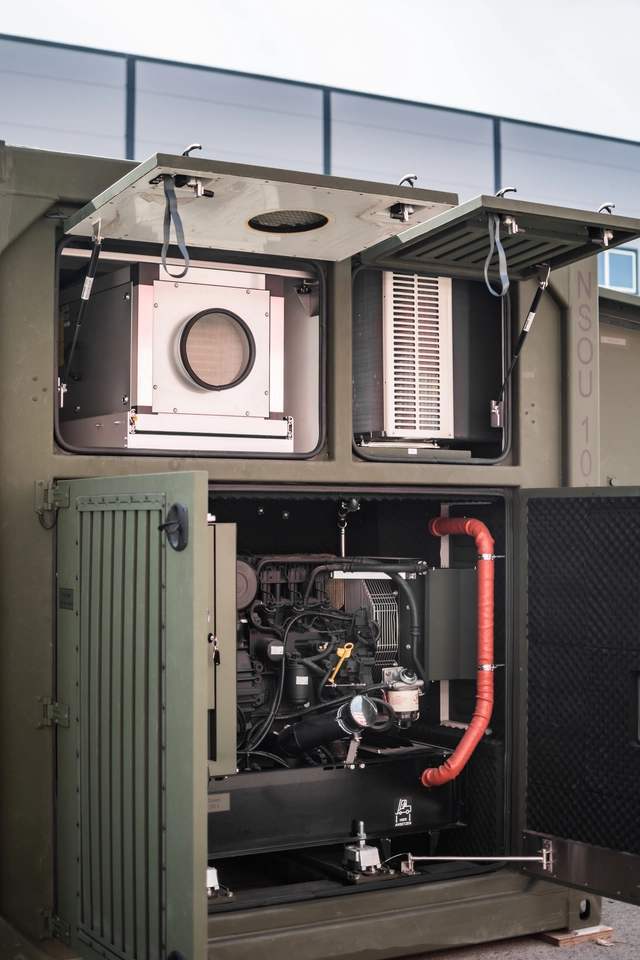

- Technical room with external insulated (50mm) steel door (single og double) for easy access.
OPTIONS
A wide range of optional components enables the Mobile Hospital system to be tailored to specific medical requirements. Enhancements such as advanced climate control, power solutions, and adaptable interior configurations provide the flexibility needed for diverse missions. Available options include air conditioning, heating, external access systems, medical furnishings, lighting, and customizable layouts designed to optimize both efficiency and functionality.
- ACU
- Dehumidifier
- Floor Heating

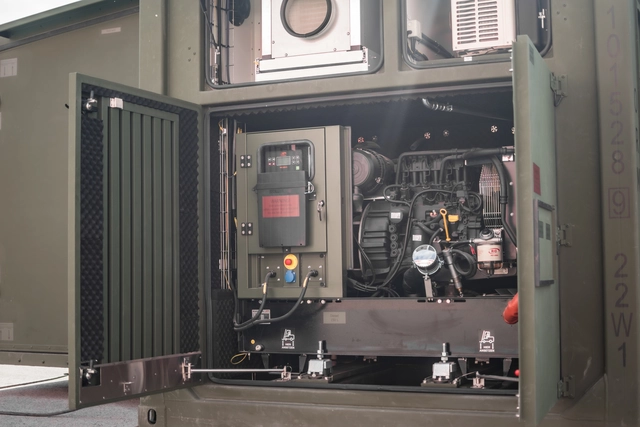

- Diesel / gasoline power generator
- Windows and side doors
- Leveling jacks (10 tons Haacon)
- Power distribution board
- C-rails, lashing points
- Outside aluminium stairs
- Internal dividing walls
- Aluminium checker - board floor cover
- Integrated furniture

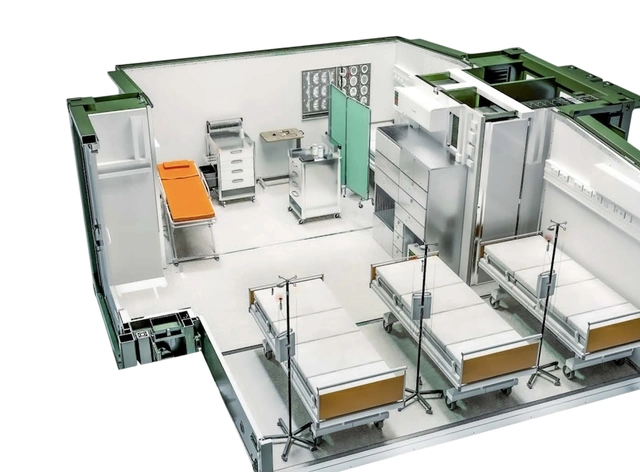

The Mobile Hospital system is available in a variety of pre-configured solutions designed to support a broad spectrum of field operations. These range from fully equipped operating theatres and intensive care units to treatment modules, diagnostic facilities, vaccination units, and storage areas. Each configuration is tailored to meet specific operational needs in both civilian and military environments.

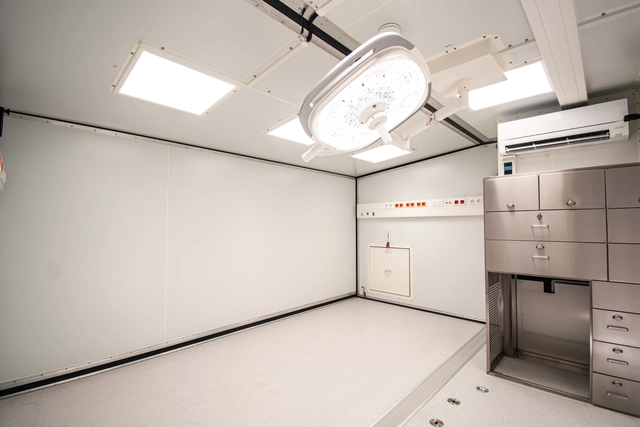

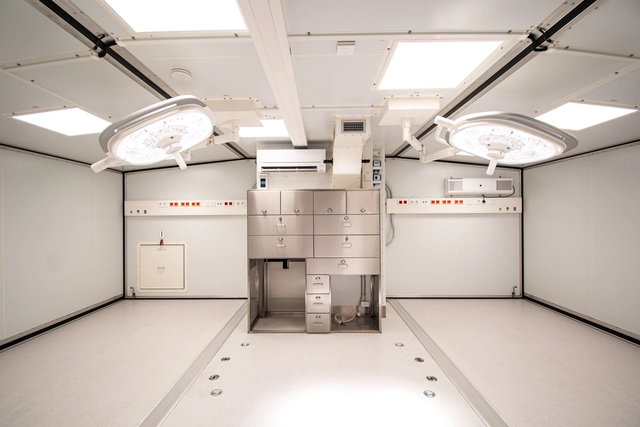

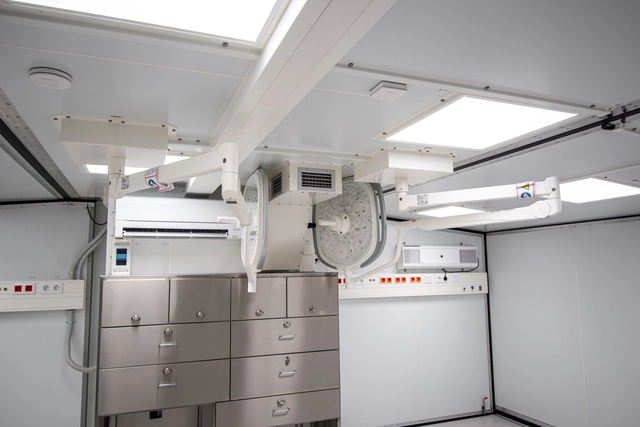

- ORM - Operating Room Module
- ERM - Emergency Room Module
- ICM - Intensive Care Module
- GTM - General Treatment Module
- DSM - Dental Module
- WDM - Ward Module
- IMM - Intermediate Module
