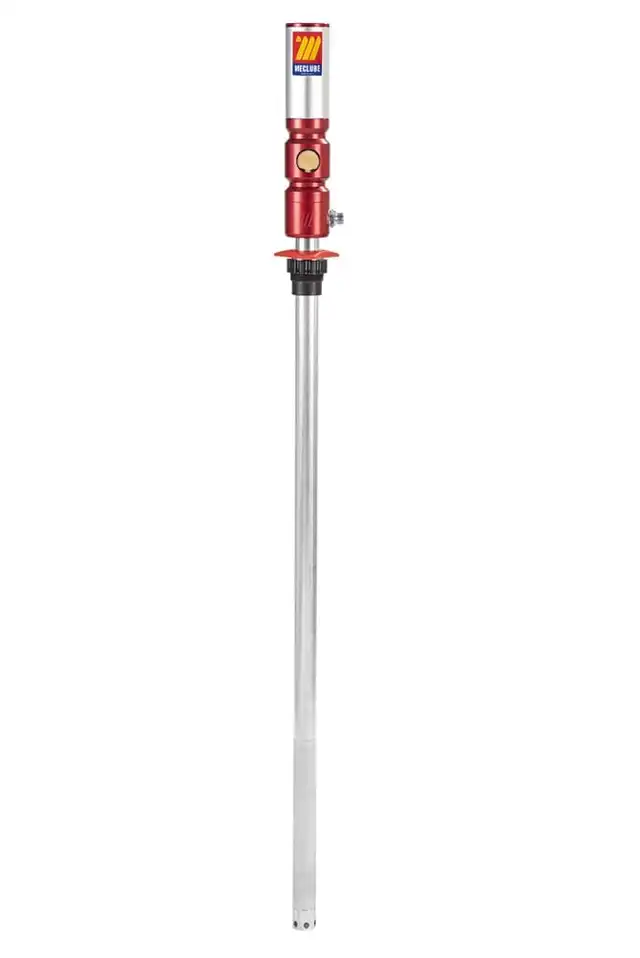

DOUBLE-ACTING AIR-OPERATED OIL PUMP Mod. 605 R=5:1 DELIVERY CAPACITY 28 l/min

For standard tanks of 750-1500 l (shank length 1250 mm) Polyurethane seals. With threaded ring for drum connection
These pumps are advised for the transfer of medium-high viscosity oil (SAE 15/240), and anti-freeze, for mediumlong distances (150 - 200 m). The delivery capacity of a pump varies according to particular applications and combinations: the pressure of air supplied; viscosity and temperature of the fluid; dimensions of delivery hose; dimensions of connections and type of gun which is used. The operating pressure may vary between a minimum of 3 bar and a maximum of 8 bar. The double-acting guarantees the delivery of a continuous and constant flow, suitable for installations on distribution facilities. To optimize the performance and the time-life of the air-operated pumps we advise to use filtered and lubricated air.

• Gross weight 8.9 kg
• Net weight 7.8 kg
• Compression ratio 5:1
• Air consumption 250 l/min
• Noise level 80 dB
• Shank diameter 42 mm
• Shank length 1250 mm
• Working pressure 6-8 bar
• Air Inlet connection F 1/4” G
• Oil outlet connection M 1/2” G
• Oil delivery capacity 8 bar 28 l/min
• For drums with capacity of 750-1500 l
