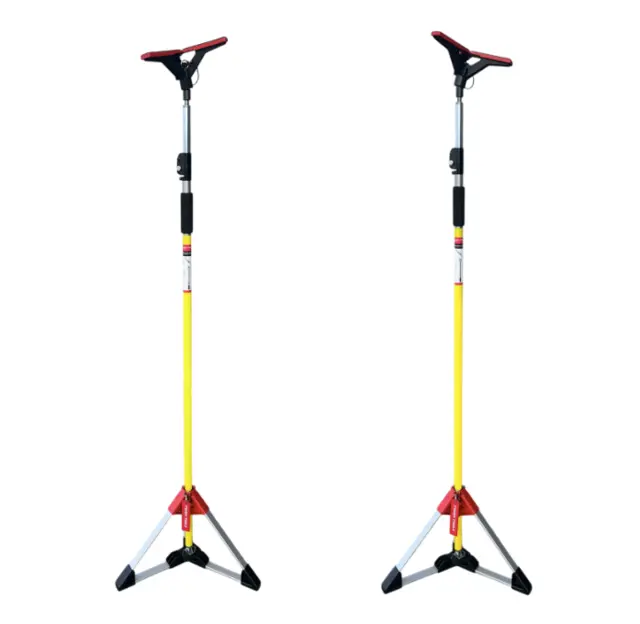

SUPPORT STRUT ADJUSTABLE FOR HORIZONTAL STABILIZER F-35, 2 PCS
The Stabilizer Support Strut is designed to replace the F-35 program jack stand used to support horizontal stabilizers during maintenance operations. Engineered to be lighter, more mobile, and more efficient, it enhances both workflow and operational flexibility. Designed with safety in mind, our stabilizer support strut will crumple under excessive force, allowing Aircraft stabilizers to center safely. The unit is constructed from high-strength steel tubing with durable steel fittings and rubberized, non-slip footings to ensure stability and secure placement. Setup and teardown are quick, simple, and efficient, minimizing maintenance downtime - Quick, tool free installation.Featuring adjustable height capability, the Stabilizer Support Strut provides reliable support across all stabilizer deflection angles. A tripod adaptor stand is included to enhance stability during use. The unit is fully wrapped in reflective foil to enhance visibility and improve safety.
Laser etching for tool identification, artwork, and unit patches is available upon request.
2 ea. stab.support struts for each Aircraft

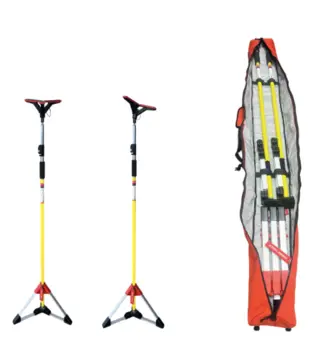

1 Set includes:
- 2 ea. Stabilizer Support struts
- 2 ea. Tripod stands, foldable
- 2 ea. Tripod surface bracket Ø280, with custom uni ball adapter for easy angle adjustment
- 1 ea. Bag custom fitted for struts and tripod stand and bracket.

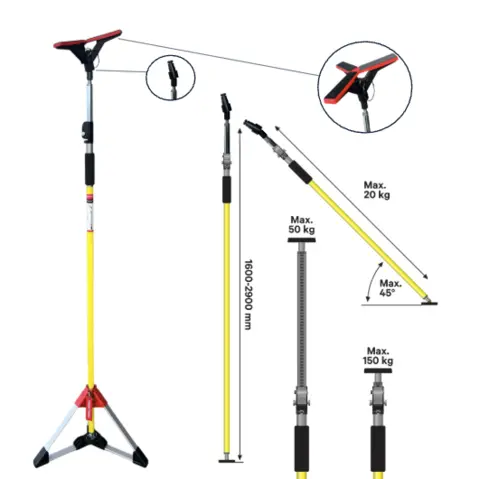

Specifications
- Length (Compressed) 1,6 meter
- Length (Extended): 2,9 meter
- Total Weight per unit: 4,0 kg / unit
- Total weight - complete set 9,0 kg
- Load limit at minimum extension length: 150 kg
- Load limit at maximum extension length: 50 kg
