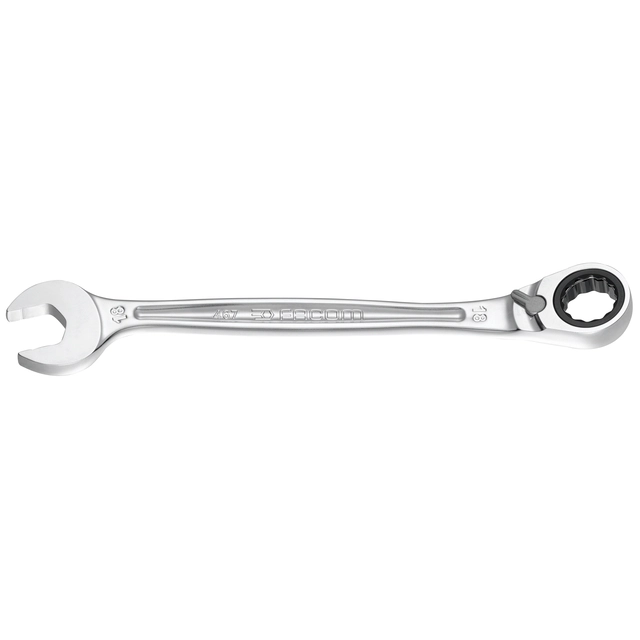

KOMBINASJONSNØKKEL 467B MILLIMETER
M/SKRALLE OG VENDER - FACOM
Skrallenøkkel. Mattforkrommet utførelse i smidd kromvanadiumstål. Samme nøkkelvidde i begge ender. Ringnøkkel med innvendig tolvkant, bukket i 15 grader vinkel. Omstillbar høyre og venstregang med vender. ISO 694, DIN ISO 1711-1, DIN ISO 691

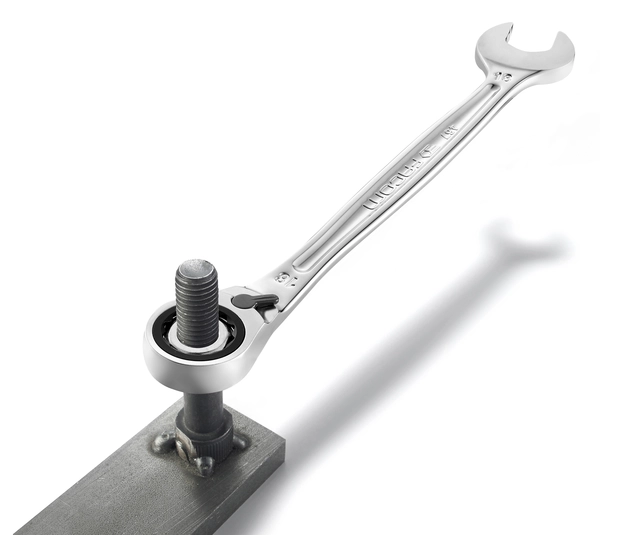

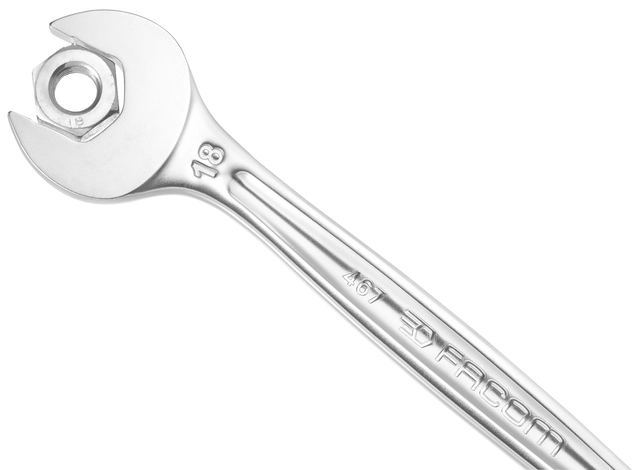

- Ultra-Grip ratchet wrenches: retaining pin on the ring + securing notch on the open end. Does not slip on the nuts, optimum safety.
- Compact ratchet mechanism reversing by lever. Better accessibility.
- 5° increments (7.5° for size 6 mm; 6° for 7, 8 and 9 mm sizes). Enhanced productivity.
- Ring and open end tilted at 15°.
- Størrelser: 6 to 41 mm
- Satin chrome finish.

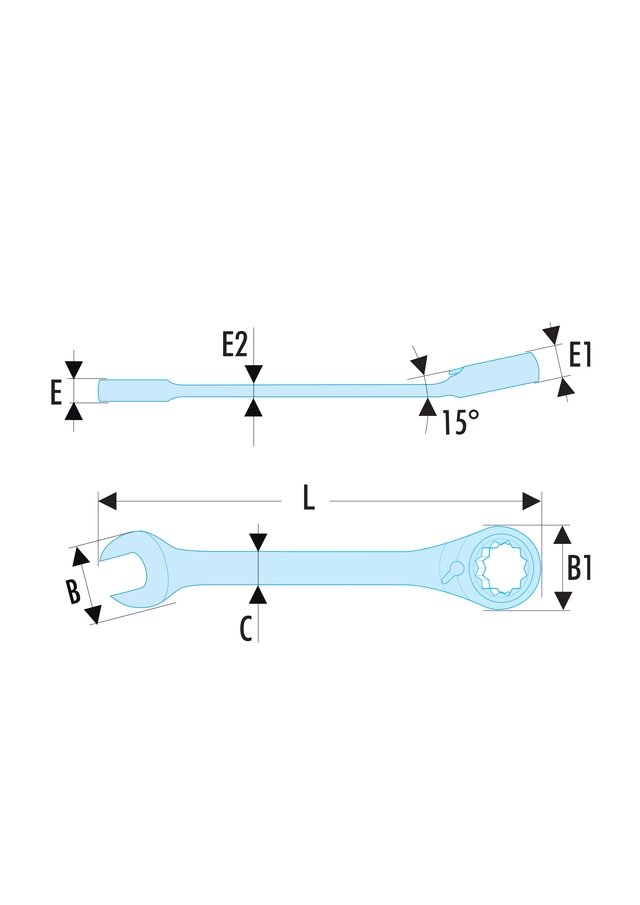

| A [mm] | A [in] | Length L [mm] | Thickness E [mm] | Thickness E1 [mm] | Thickness E2 [mm] | Head Height C [mm] | Head Width B [mm] | Head Width B1 [mm] | Weight [Kg] |
|---|
| 467B.10 | 10.0 | | 158.0 | 5.1 | 7.3 | 3.4 | 10.4 | 22.7 | 20.2 | 0.049 |
| 467B.11 | 11.0 | | 165.0 | 5.2 | 7.7 | 3.5 | 10.6 | 23.7 | 22.0 | 0.058 |
| 467B.12 | 12.0 | | 171.0 | 5.4 | 8.2 | 3.8 | 11.3 | 26.8 | 23.2 | 0.069 |
| 467B.13 | 13.0 | | 178.0 | 5.7 | 8.6 | 4.3 | 12.2 | 28.4 | 25.3 | 0.086 |
| 467B.14 | 14.0 | | 190.0 | 5.9 | 9.0 | 4.3 | 13.0 | 30.8 | 27.0 | 0.1 |
| 467B.15 | 15.0 | | 199.0 | 6.1 | 9.4 | 4.7 | 14.0 | 32.3 | 28.3 | 0.115 |
| 467B.16 | 16.0 | | 208.0 | 6.6 | 9.9 | 5.3 | 14.1 | 34.9 | 30.0 | 0.138 |
| 467B.17 | 17.0 | | 225.0 | 6.6 | 10.3 | 5.4 | 15.4 | 36.8 | 31.7 | 0.162 |
| 467B.18 | 18.0 | | 236.0 | 7.4 | 10.7 | 5.8 | 15.6 | 38.4 | 32.8 | 0.183 |
| 467B.19 | 19.0 | | 247.0 | 7.4 | 11.2 | 6.0 | 16.0 | 41.2 | 33.9 | 0.212 |
| 467B.21 | 21.0 | | 287.0 | 8.6 | 13.0 | 6.3 | 18.0 | 46.9 | 39.7 | 0.314 |
| 467B.22 | 22.0 | | 287.0 | 8.6 | 13.0 | 6.3 | 18.0 | 46.9 | 39.7 | 0.314 |
| 467B.24 | 24.0 | | 320.0 | 8.9 | 14.5 | 6.7 | 19.5 | 51.0 | 46.0 | 0.414 |
| 467B.27 | 27.0 | | 356.0 | 9.8 | 15.5 | 7.1 | 21.0 | 57.9 | 52.0 | 0.567 |
| 467B.30 | 30.0 | | 400.0 | 10.5 | 17.0 | 8.3 | 24.2 | 64.9 | 58.0 | 0.794 |
| 467B.32 | 32.0 | | 422.0 | 11.0 | 17.5 | 8.5 | 26.0 | 67.9 | 62.2 | 0.951 |
| 467B.34 | 34.0 | | 455.0 | 11.0 | 17.5 | 8.7 | 27.0 | 72.0 | 62.2 | 1.026 |
| 467B.36 | 36.0 | | 487.0 | 13.0 | 18.0 | 10.5 | 30.0 | 79.9 | 66.0 | 1.343 |
| 467B.38 | 38.0 | | 487.0 | 13.0 | 18.0 | 10.5 | 30.0 | 79.9 | 66.0 | 1.343 |
| 467B.41 | 41.0 | | 565.0 | 14.0 | 19.5 | 12.5 | 31.3 | 84.7 | 72.0 | 1.871 |
| 467B.6 | 6.0 | | 128.0 | 4.0 | 6.3 | 2.7 | 6.5 | 14.1 | 14.1 | 0.02 |
| 467B.7 | 7.0 | | 140.0 | 4.6 | 6.5 | 3.1 | 8.2 | 18.6 | 16.8 | 0.034 |
| 467B.8 | 8.0 | | 140.0 | 4.6 | 6.5 | 3.1 | 8.2 | 18.6 | 16.8 | 0.034 |
| 467B.9 | 9.0 | | 149.0 | 4.6 | 6.9 | 3.2 | 9.0 | 21.0 | 18.6 | 0.04 |
