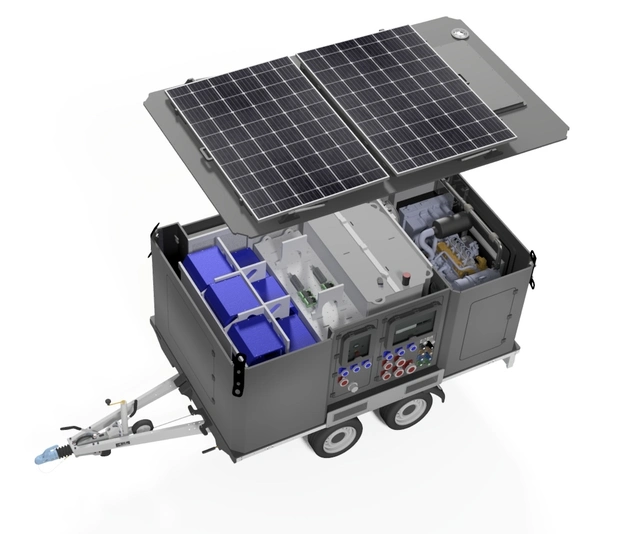

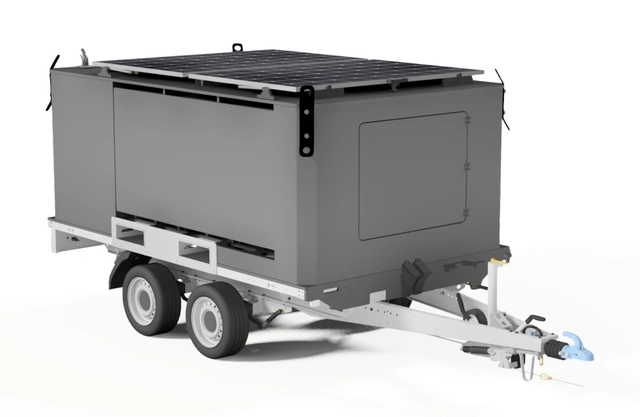

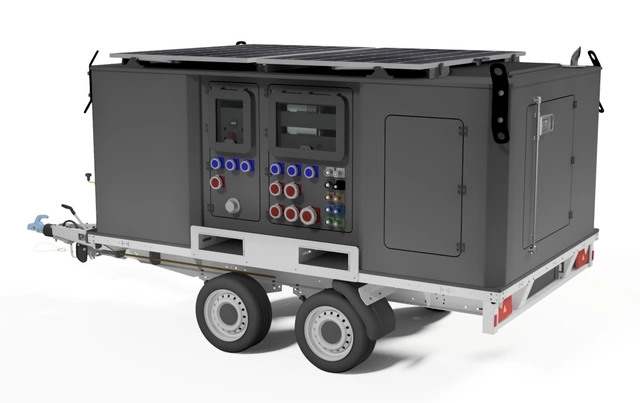

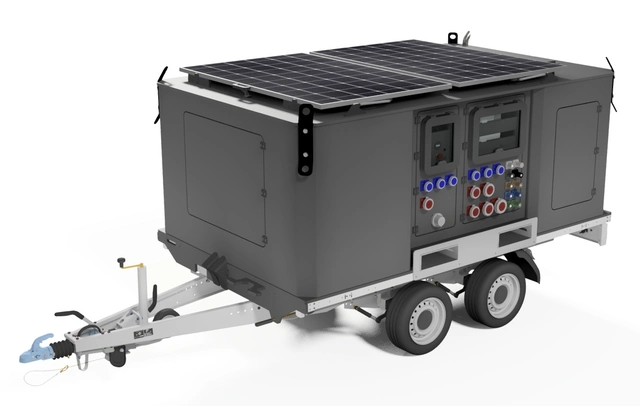

MOBILE POWER UNIT 4000 TRAILER - GREEN ENERGY
HYBRID POWER TRAILER WITH GENERATOR AND UPS BATTERY SOLUTION.
High performance hybrid generator trailer
60 - 90% reduced fuel consumption and Noice!
Introducing our advanced Hybrid Power Trailer. This innovative solution offers a substantial reduction in noise and fuel consumption compared to conventional systems. It features an integrated generator, fuel tank and UPS Battery solution.
- Every component has been carefully chosen to ensure robustness and reliability
- Extremely user-friendly with "plug-and-play" functionality, equipped with a simple on/off switch
- Offers great flexibility—manageable online from a phone, tablet, or computer if wanted.
(Cload monitored 5G dual radio modem, Cload enabled monitoring, VPN access) - Continuous online support available 24/7
- Equipped with LTO batteries, recognized as the safest and most reliable batteries in the industry. They pose no risk of fire or thermal runaway, with 25,000 charging cycles
48 V battery voltage ensures safety during handling - Proven performance under extreme environmental conditions, from arctic cold to central European heatwaves
Mobile Power Unit 4000 = 45kW charge / 150 kVa inverters / 50 kWh LTO battery capacity
Standard Inverters: 120kW / 150 kVa nominal power - Peak current of 200 - 240, inrush power.
Option:
Can be custom built for bigger capacity
- Reduced fuel consumption by 60 - 90% vs. conventional generator
(1000 liter consumption by conventional generator, the Mobile Power Unit 3000 uses only 100-400 liters of fuel) - Reduced noice by 60 - 90% vs. conventional generator
- Service, typically 4-12 months operating time, ref. operational profile / useage
- Emissions reduced by over 80% (particles etc)
- CO2 reduction 60-90%
- Environmental diesel compatible (HVO 100)
- Can be used with 230 and 400V "thin grid" for further savings
- Can be charged from 0 to 100% immediately
- No voltage drop regardless of load
- Stable current with a perfect sine curve
- Can be supplied with floodlights and 4K, 360° camera solution on a 5.5m mast
- Most robust battery solution on the market, no risk of thermal runaway
- 25,000 - 60,000 charge cycles
- Charging the batteries at a very good speed in minus 40 C to +45 C
- Overload protection
- Automatic restart in case of overload
- Diesel: 750 liters
- 15 kW "thin grid" power connection for weak-grid applications, reducing fuel consumption where shore power capacity (available amperage) is limited.
- Additional 11 kW output from the integrated inverters, for connection of external AC-coupled solar panels.
- Certified lifting points at each corner, also serving as tie-down points for secure transportation.
Microgrid capability – multiple units can be connected together with a simple one-button setup. Connect the Powerlock cables, release the emergency stop, and the system is ready to operate. Whether connecting 2, 3, 4, 5 or more units, no configuration is required. The units automatically share the load, with no communication between them necessary.
Quiet Mode: Quiet Mode can be easily activated, with adjustable start and end times. When activated, the engine speed is reduced from 1,800 RPM to 1,100 RPM, while the charging power is reduced from 45 kW to 22 kW.
Can be delivered with or without trailer:
- Weight without trailer: 2300 kg (no fuel)
- Weight with trailer: 2900 kg (no fuel)
- Measurement: L3000 x W1530 x H1300mm
