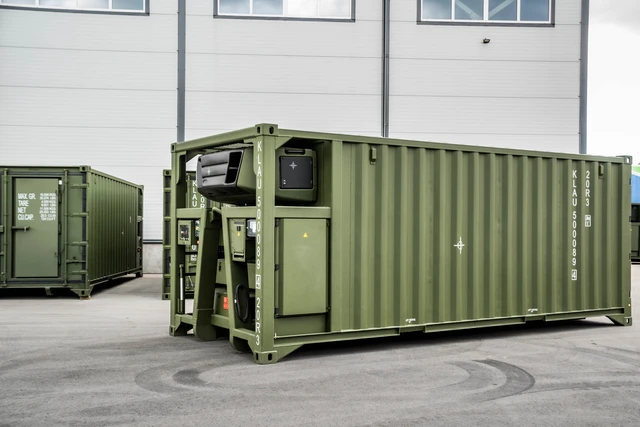

REEFER CONTAINER 20 FT

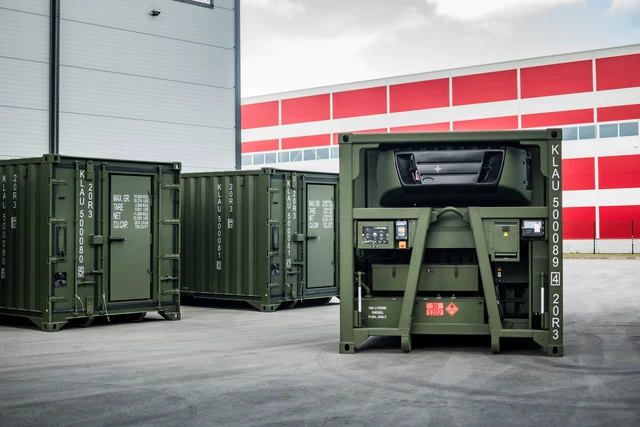

The 20-foot reefer shelter is a mobile, temperature-controlled container designed for demanding field operations. Equipped with a diesel-electric cooling and heating system, it can operate on both diesel power and external electricity, ensuring reliable climate control in extreme temperatures from -32°C to +49°C. Built on a standard ISO frame with a STANAG hooklift interface, the shelter combines robust construction, integrated power systems, and dependable performance. It is well suited for storing temperature-sensitive equipment, supplies, and medical materials in harsh environments.

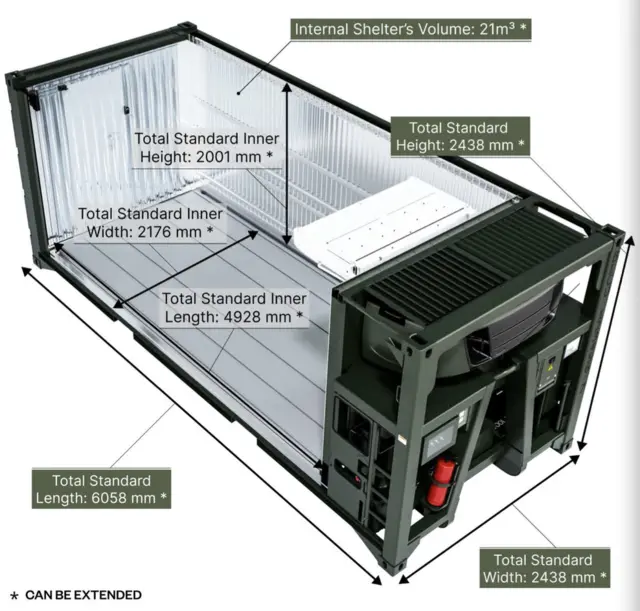

SPESIFICATIONSThe Reefer Shelter is constructed on ISO- and STANAG-compliant frames, with standard dimensions of 6058 × 2438 × 2438 mm and options for scalability. It provides an internal volume of 21 m³ and a centre height of 2300 mm, making it well suited for temperature-sensitive cargo. Equipped with a diesel-electric power system, the shelter maintains internal temperatures between 0°C and +30°C while ensuring reliable operation in external conditions ranging from -32°C to +49°C. With a gross weight of 30,000 kg and a tare weight of 4,500 kg, it integrates both power supply and climate control systems for efficient performance.
| Standard dimensions | 6058 x 2438 x 2438mm |
| Inner dimensions (LxWxH) | 4928 x 2176 x 2001mm |
| NET tare weight | 4.500 kg |
| Max GROSS weight | 30.000 kg |
| Extreme Climate Resistant | -32°C to +49°C |
| Internal Volume | 21 m3 |
- Scalable in hight and length
- Forklift compatible
- CSC Certification
- ISO Standards compliance
FEATURES
The reefer shelter is equipped with diesel-electric cooling, an integrated generator, high-performance insulation, blackout lighting, and heated door gaskets. Designed for autonomous operation in the field, it delivers consistent temperature control and reliable long-term performance, even in demanding and remote environments.
- CSC Certified, featuring exclusively CE marked equipment
- Standard ISO container floor frame with forklift pockets and STANAG compliant hooklift bar.

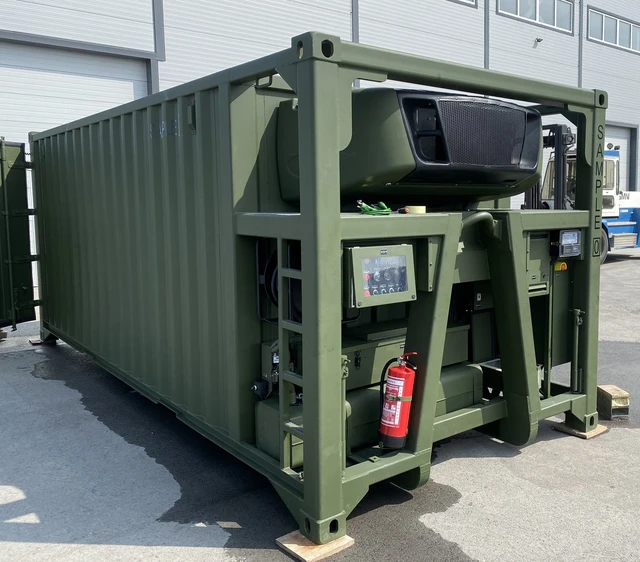

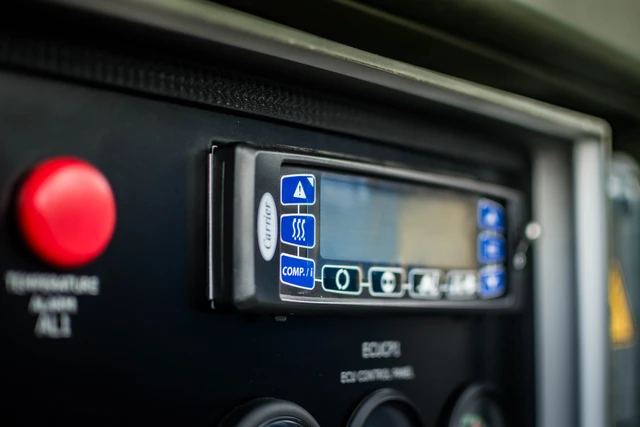

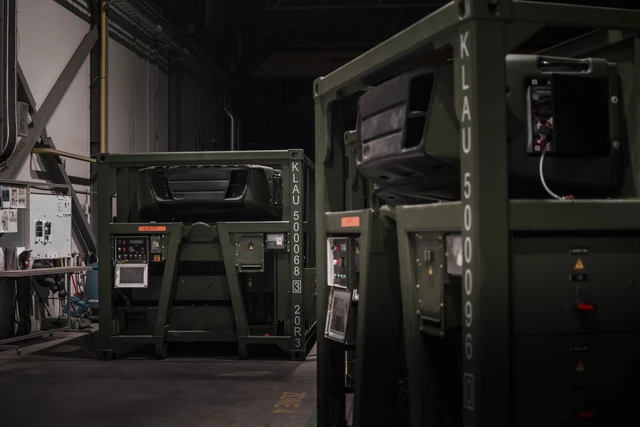

- Diesel and electrical powered Carrier Supra 750 refrigeration unit.
- Integrated diesel generator provides up to 72 hours of standalone operation in field conditions.

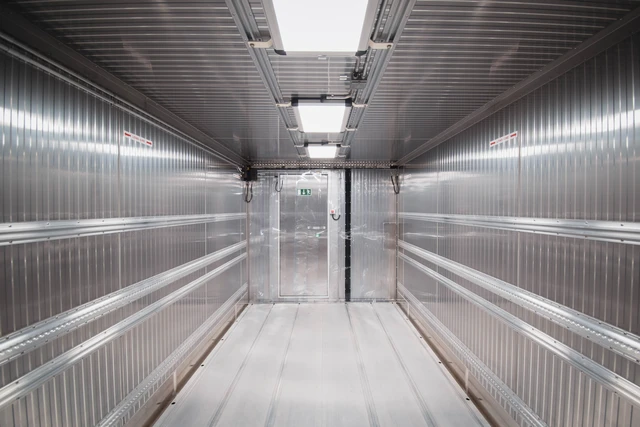

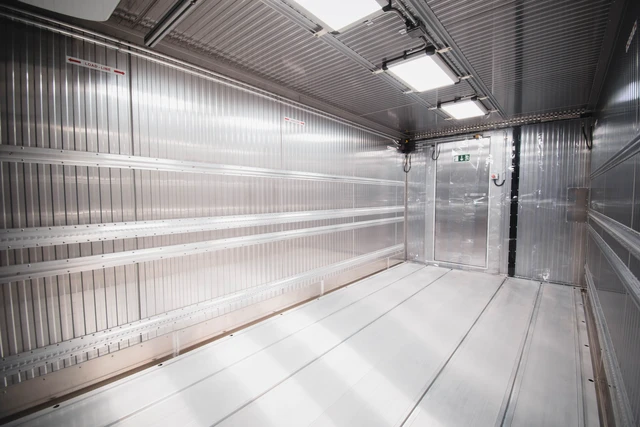

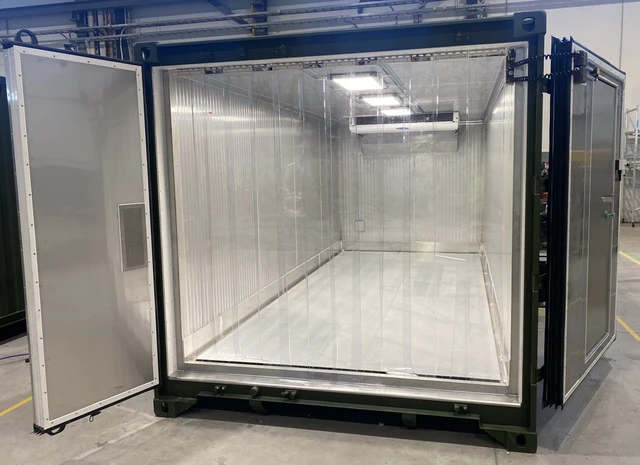

- Insulated with sandwich panels and stainless sheets on the inner walls
- Heated door gaskets

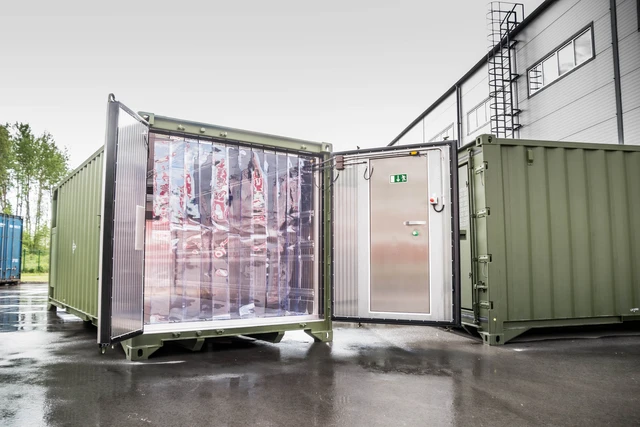

- Personell door integrated in the double end doors.
- Durable curtain inside the end door to prevent temperature loss.

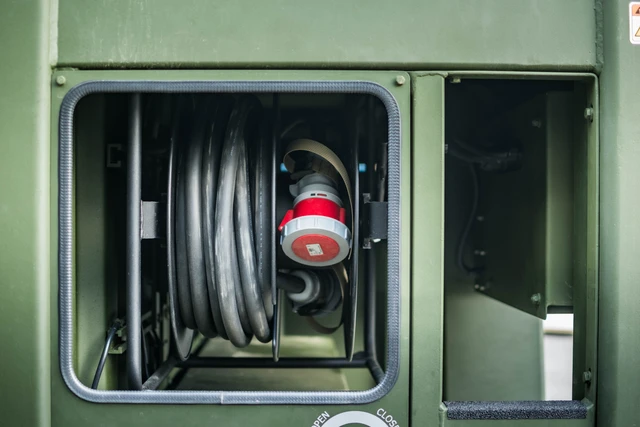

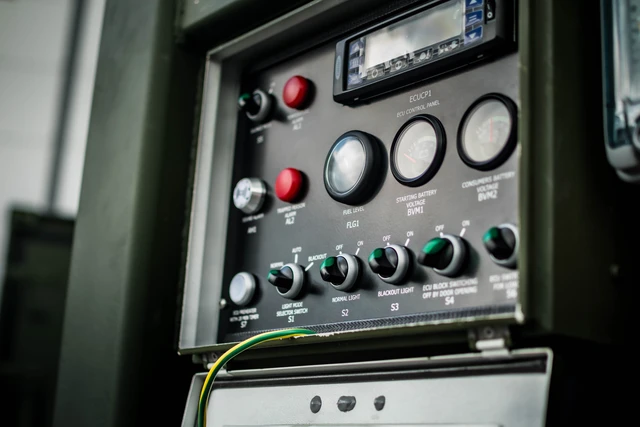

- 400V 32A power inlet with power distribution board
- Possible to charge vehicle batteries (24V) when in field operations.

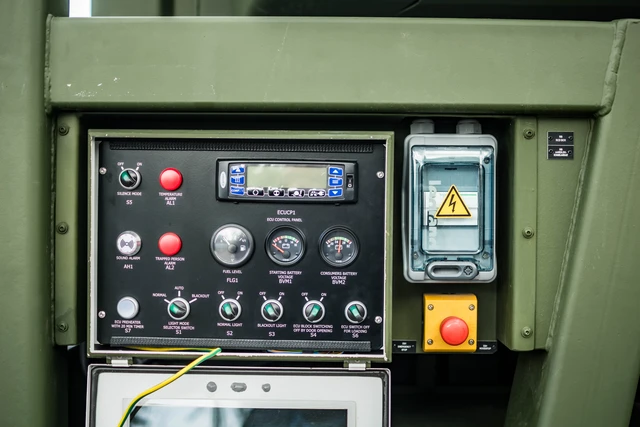

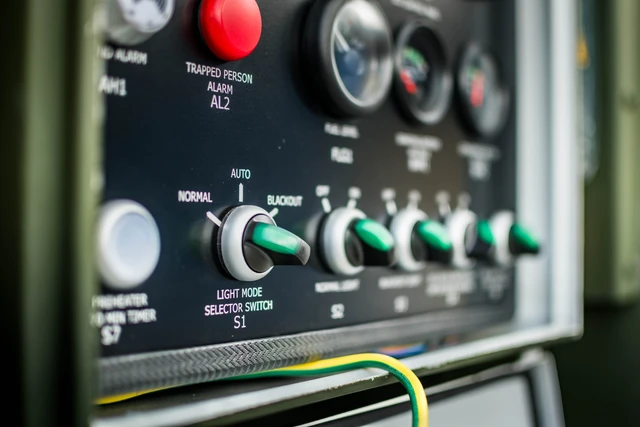

- Integrated black-out system with roof mounted LED lamps.
- EMC compliant to STANAG 4373 - AECTP 500.
OPTIONS
The reefer shelter can be tailored with a range of optional features, including interior shelving, tool storage, external access solutions, and remote monitoring systems. Additional upgrades such as enhanced lighting, reinforced flooring, power outlets, and advanced climate monitoring can also be integrated. These customizations enhance functionality, safety, and flexibility, allowing the shelter to be adapted to specific operational scenarios and mission requirements.
