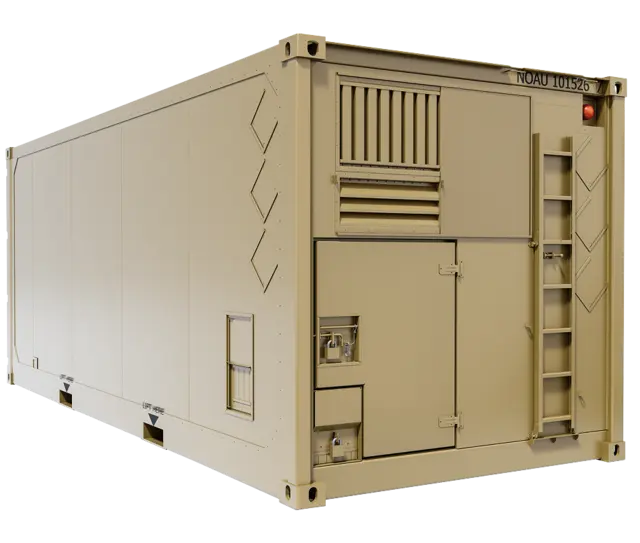

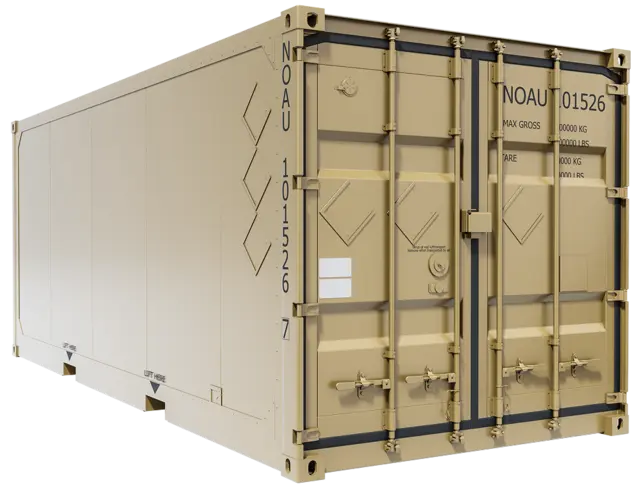

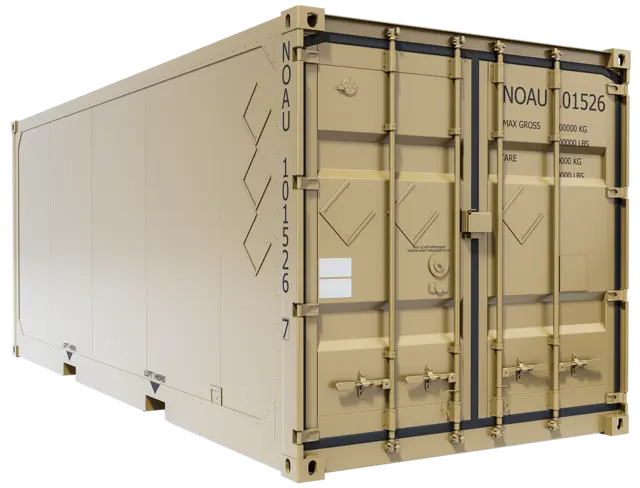

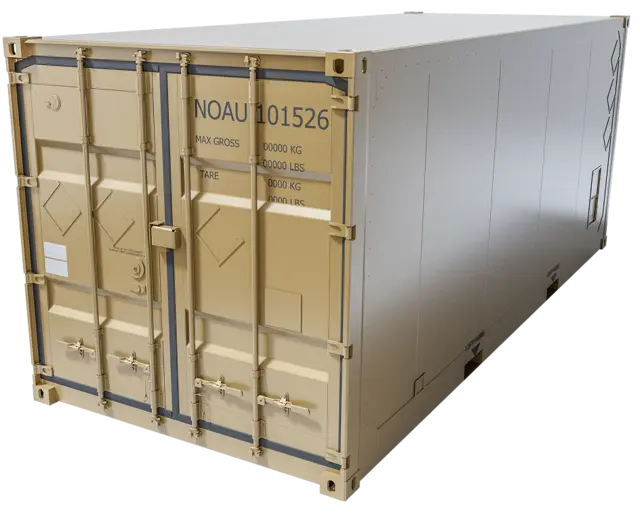

F-35 CARGO CONTAINER 20 FT
The F-35 cargo container is an insulated, CSC-certified 1C unit compliant with ISO 668 and ISO 1496-1 standards. It is designed with an end-opening configuration to ensure safe and efficient handling and access. Inside, the container is equipped with a modular system of shelves and cabinets that can be reconfigured by the user without the need for special tools. This system can also be easily removed, allowing for straightforward maintenance or conversion of the container for other operational purposes. At the rear, the container includes a foldable work desk fitted with a double Schuko 230 V AC outlet, ensuring practical access to electrical power. Overall, these features make the F-35 cargo container a flexible and adaptable solution for a wide range of operational needs.
SPESIFICATIONSThe F-35 cargo container is designed in accordance with ISO and CSC standards, featuring reinforced steel panels and corrosion-protected surfaces to ensure long-term durability.

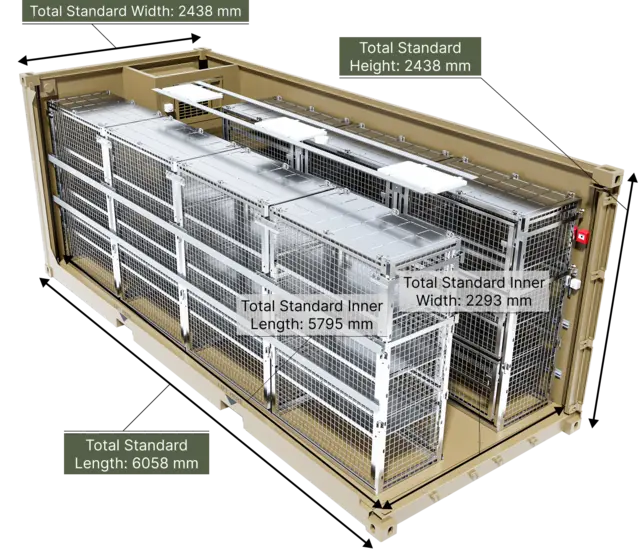

It has external dimensions of 6058 × 2438 × 2438 mm and internal dimensions of 5795 × 2293 × 2204 mm, providing efficient use of cargo space. The container has a tare weight of 5,375 kg and a maximum gross weight of 24,000 kg, ensuring reliable performance under demanding conditions. Integrated C-rails with lashing points enable flexible and secure load securing, while the removable cage system facilitates safe, organized, and adaptable cargo handling for both civilian and military applications.
| Standard dimensions | 6058 x 2438 x 2438mm |
| Inner dimensions | 5795 x 2293 x 2204mm |
| NET tare weight | 5375 kg |
| Max GROSS weight | 24.000 kg |
| Ext. Color | RAL 1039 |
| Internal Color | RAL 1013 |
- Integrated C-rails and lasing points

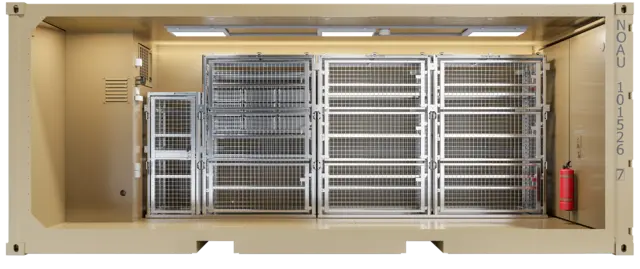

- Removable cage storage system
- Green Combat light
- External and Internal power supply
- Built in HVAC unit
OPTIONS
The F-35 cargo container can be delivered with customized options to improve both safety and functionality.
Available features include integrated C-rails, anchor points rated at 3000 and 8000 daN, and a reinforced 28 mm plywood floor covering. Additional options such as cage storage, HVAC systems, green combat lighting, and power supply connections offer increased flexibility for demanding operational environments.
