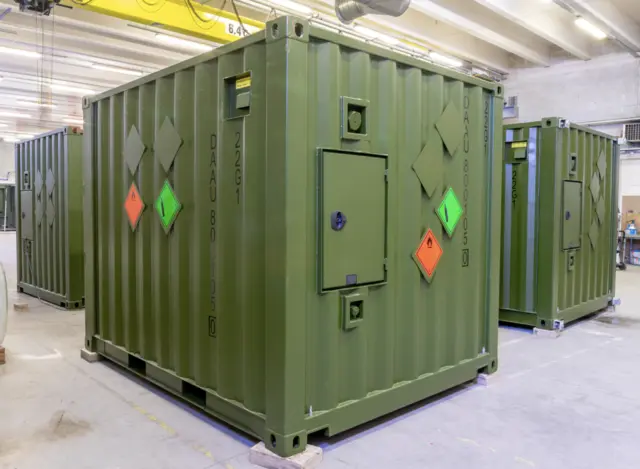

10 FOOT GAS STORAGE CONTAINER

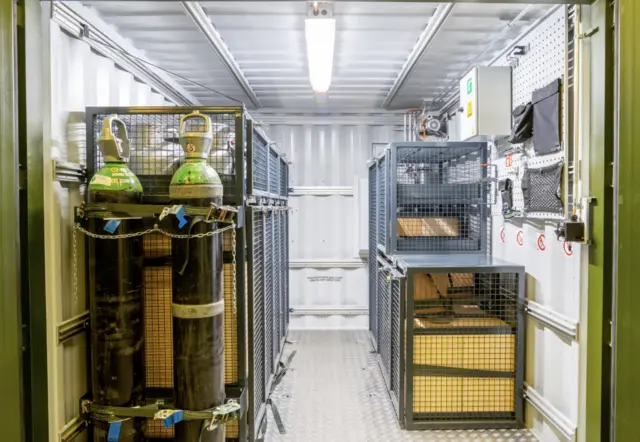

10ft LOW CUBE container is specially designed for the safe storage and transportation of gas cylinders, including explosive and pressurized gases. The container provides a secure and ventilated environment that minimizes the risk of ignition or leakage during handling and transit.
It is constructed with proper anchoring points for cylinder stability, and ATEX ventilation to ensure safe gas dispersion. The container meets relevant safety and transport standards. (Fitted for C-130 Hercules)
Specification
| Gross weight: | 10 000 kg |
| Load capacity: | 8 000 kg |
| Dimensions according to ISO668: | 1D (10ft) |
| Total length: | 2991 mm |
| Height: | 2438 mm |
| Width in transport: | 2438 mm |
| Width when opened: | 2438 mm |
| Insulation: | uninsulated |
| Floor area when expanded: | ~6 m² |
| Standards: | ISO 1161: 2016, ISO 1496-1-5: 2013, ADR 2.2, ATEX ZONE 2G, TRG 280, CSC certificated |
| Operating temperature: | from -34°C to +50°C |
| Deployment and repack time: | 5 minutes |
| Equipment: | ATEX ligthing, ATEX ventilation, 6 lashing points, Gas cylinder storage |
