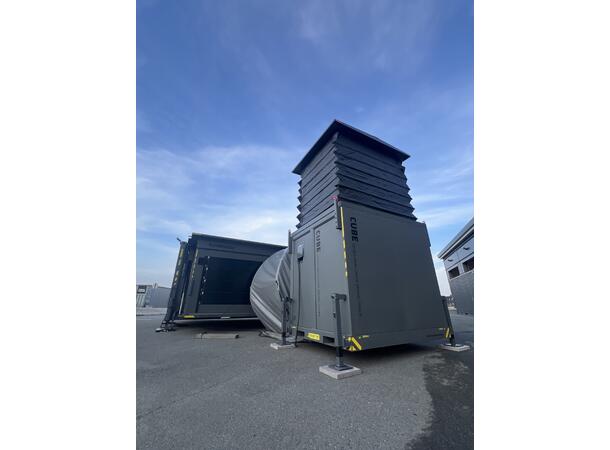

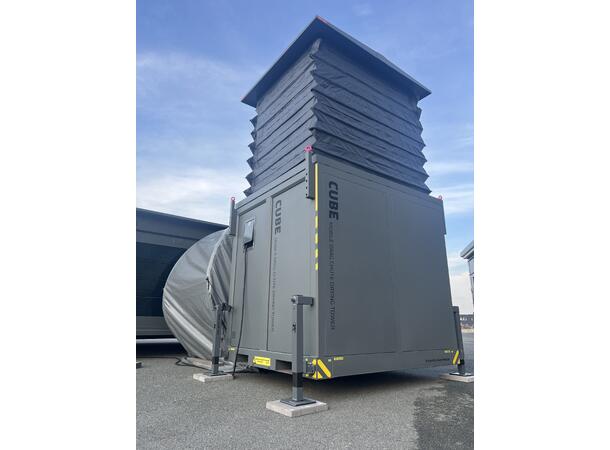

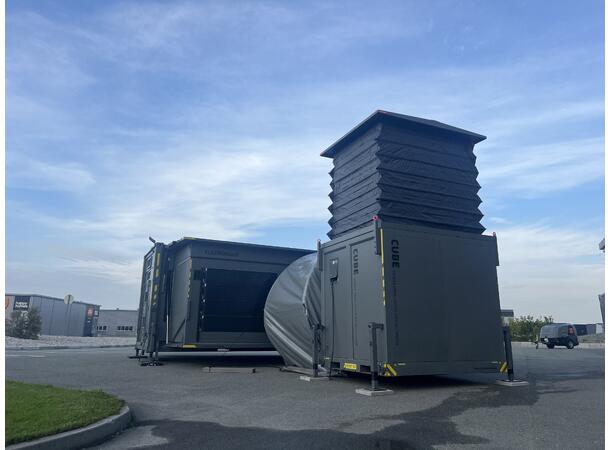

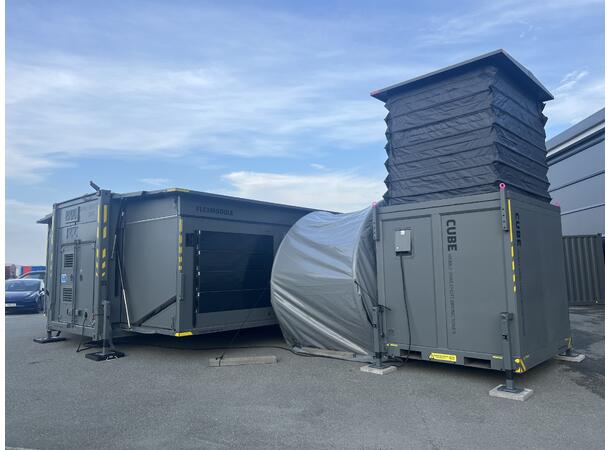

MOBILE DRAGCHUTE DRYING TOWER CUBE FOR DRYING 6 EA. DRAG CHUTES

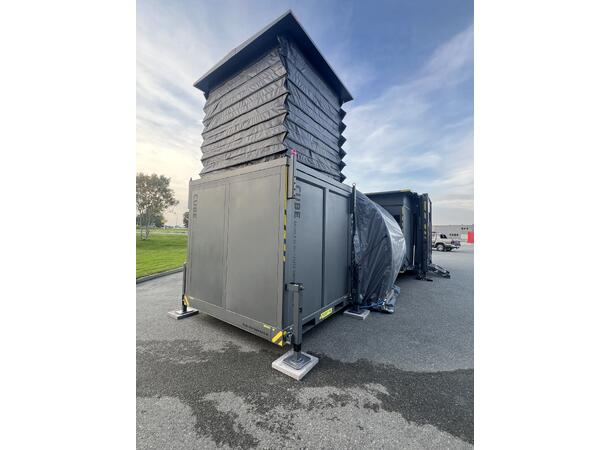

The Mobile Drag Chute Drying Tower (DC Cube) offers an unparalleled solution for drying F-35 Aircraft drag chutes during deployment. It has a drying capacity for six (6) drag chutes per batch. Featuring integrated forklift pockets and crane hoist points, as well as optional attachable wheels or leveling jacks, the DC Cube is highly mobile and can be easily transported by truck, air, or sea. Its dimensions are tailored to secure onto a flight pallet and fit into a C-130 Hercules Cargo aircraft for forward deployment, making it exceptionally convenient for varied locations.

Construction:

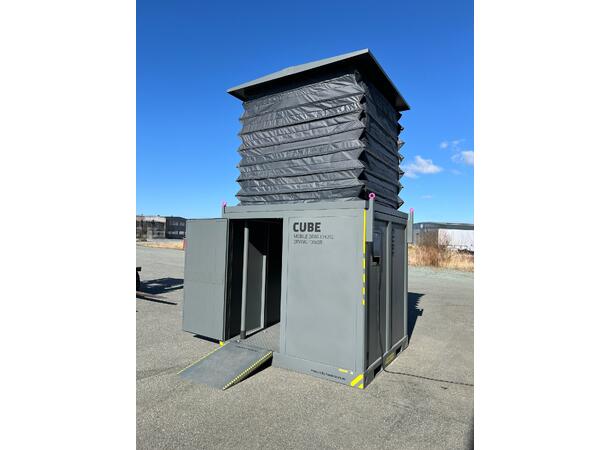

The DC Cube is constructed from powder-coated aluminum, making it both lightweight and resistant to corrosion. It is accessible from both the front and the back, and features a single-sided forklift pocket designed to prevent damage when the door is inadvertently left open. The cube boasts a modular design, with side panels that can be easily replaced by bolting on a new panel onsite if damaged. It includes an integrated power hook-up box, and its angled roof design helps with rain drainage to prevent water pooling. The roof also features integrated D-hook hoist points. Rubber weather stripping around the cube ensures it remains watertight when closed. The Mobile Drag Chute Cube can be equipped with removable "twist lock" caster wheels featuring polyurethane tread and double ball bearings, or leveling jacks if required.

Internal:

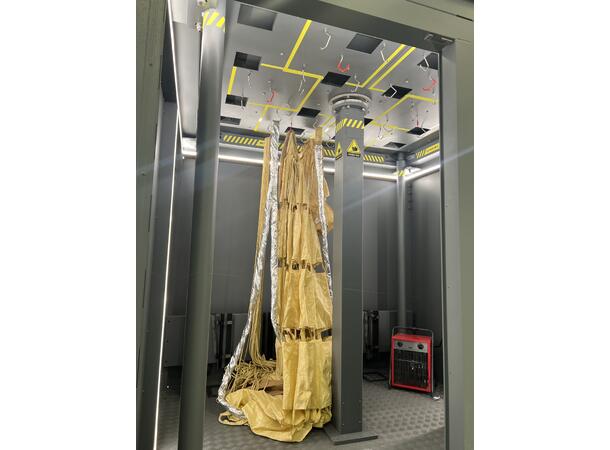

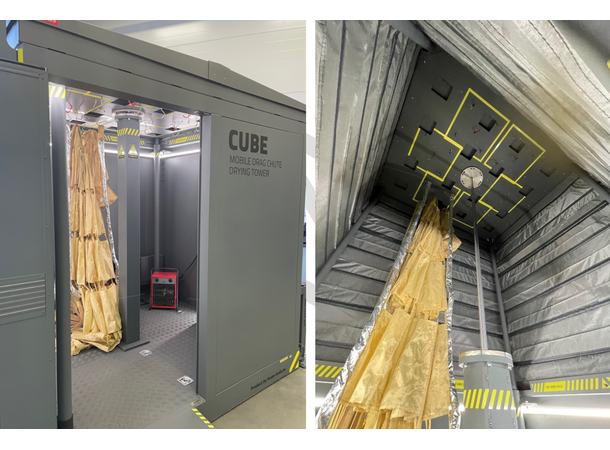

The DC Cube is equipped with integrated heaters, fans, and dehumidifiers, along with interior slotted LED light strips for enhanced visibility. It also includes a toolkit specifically custom designed for drag chute maintenance with all tools needed.

Operational Capability:
Unloading from C-130 to fully operational can be completed within minutes, only requiring a forklift driver placing the DC Cube wherever needed outdoors or indoors. It can operate autonomously without any permanent infrastructure, allowing it to shine in even the most remote locations. Compatible with Air, Sea, or truck transport.

Construction Information:
Exterior Dimensions – W2430 x D2100 x H2438mm
Max Gross weight 4500kg
D-Hook hoist points (verify load capacity)
Construction material – Aluminum
Size compatible with C-130 Hercules Cargo Aircraft
Standard color: Grey RAL 7012, but can be delivered in other colors upon request.
